3D Printable 70mm Updated Variable Nozzle Electric Ducted Fan .STL Files

This file contains all files required to print your 70mm Updated Variable Nozzle Electric Ducted Fan at home.

Total Printing Volume of all 9 Files: 83,304 mm³

This file contains 9 .STL files i.e.

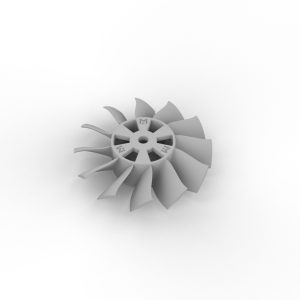

1. 70mmm EDF Propeller

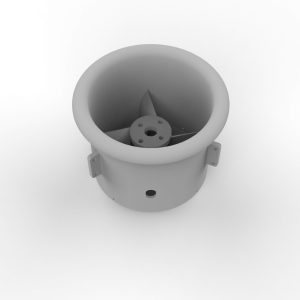

2. Casing

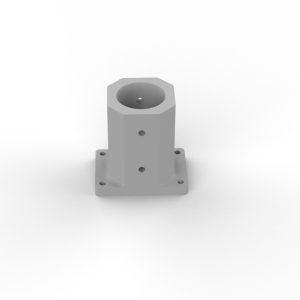

3. EDF Holder

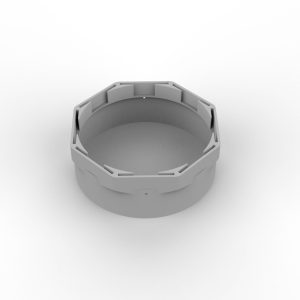

4. Nozzle Holder
5. Nozzle Link New
6. Nozzle
7. Servo Holder
8. Servo link
9. Slider

The Variable Nozzle EDF is distributed into the parts mentioned above so that you can easily print any part at your home with your own DIY 3D printer of minimal size i.e. 220(mm)x220(mm)x250(mm).

All the files given are complete and have been tested.

• 70mm EDF Propeller

  • Volume: 7,967.00 mm³
  • Dimensions (LBH): 67 x 67 x 18 mm

• Casing

  • Volume: 43,586 mm³
  • Dimensions (LBH): 87 x 87 x 65 mm

• EDF Holder

  • Volume: 9,073 mm³
  • Dimensions (LBH): 53 x 53 x 32 mm

• Nozzle Holder

  • Volume: 11,062 mm³
  • Dimensions (LBH): 76 x 76 x 29 mm

• Nozzle Link New

  • Volume: 327.00 mm³
  • Dimensions (LBH): 8.77 x 8.77 x 32 mm

• Nozzle

  • Volume: 3,731.36 mm³
  • Dimensions (LBH): 29.94 x 26.91 x 50.00 mm

• Servo Holder

  • Volume: 924.00 mm³
  • Dimensions (LBH): 18.90 x 18.90 x 31.20 mm

• Servo Link

  • Volume: 293.57 mm³
  • Dimensions (LBH): 2 x 14 x 31 mm

• Slider

  • Volume: 6,341 mm³
  • Dimensions (LBH): 101 x 101 x 8.6 mm

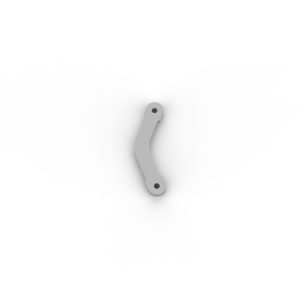

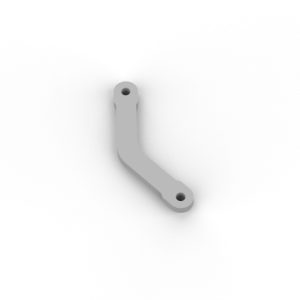

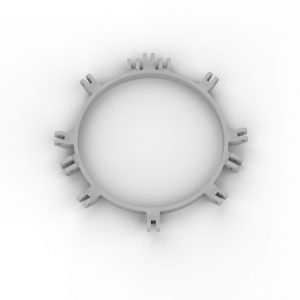

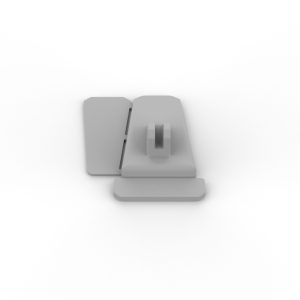

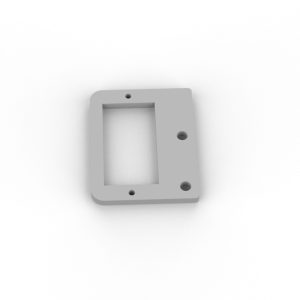

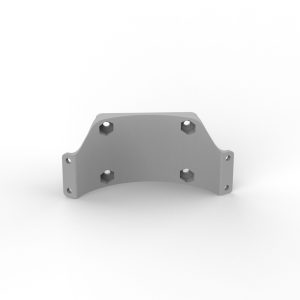

70mm Updated Variable Nozzle EDF Parts included in the File, Images-





Watch our DIY 70mm Updated Variable Nozzle Electric Ducted Fan video on YouTube.

In case of any doubt, please use the Contact Us page.
