Designed for upto 28 mm Motor Dia
3D Printer Required
220*220*250 mm
Weight 117 gm
Motor Temperature Check
Size Comparisson
80 mm Prop Vs 100 mm Prop
80 mm Casing Vs 100 mm Casing
Support Removal
Prop Support Removal
Casing Support Removal
6 Blade Propeller performance test
Assembly
Thrust Test using Mechanical Rig
8 Blade Propeller performance test
Assembly
Thrust Test using Mechanical Rig
12 Blade Propeller performance test
Assembly
Thrust Test using Mechanical Rig
This file contains all files required to print your own 80mm Ducted Fan at home.
Total Printing Volume of all 6 Files: 88,290 mm³
This file contains 8 .STL files i.e.

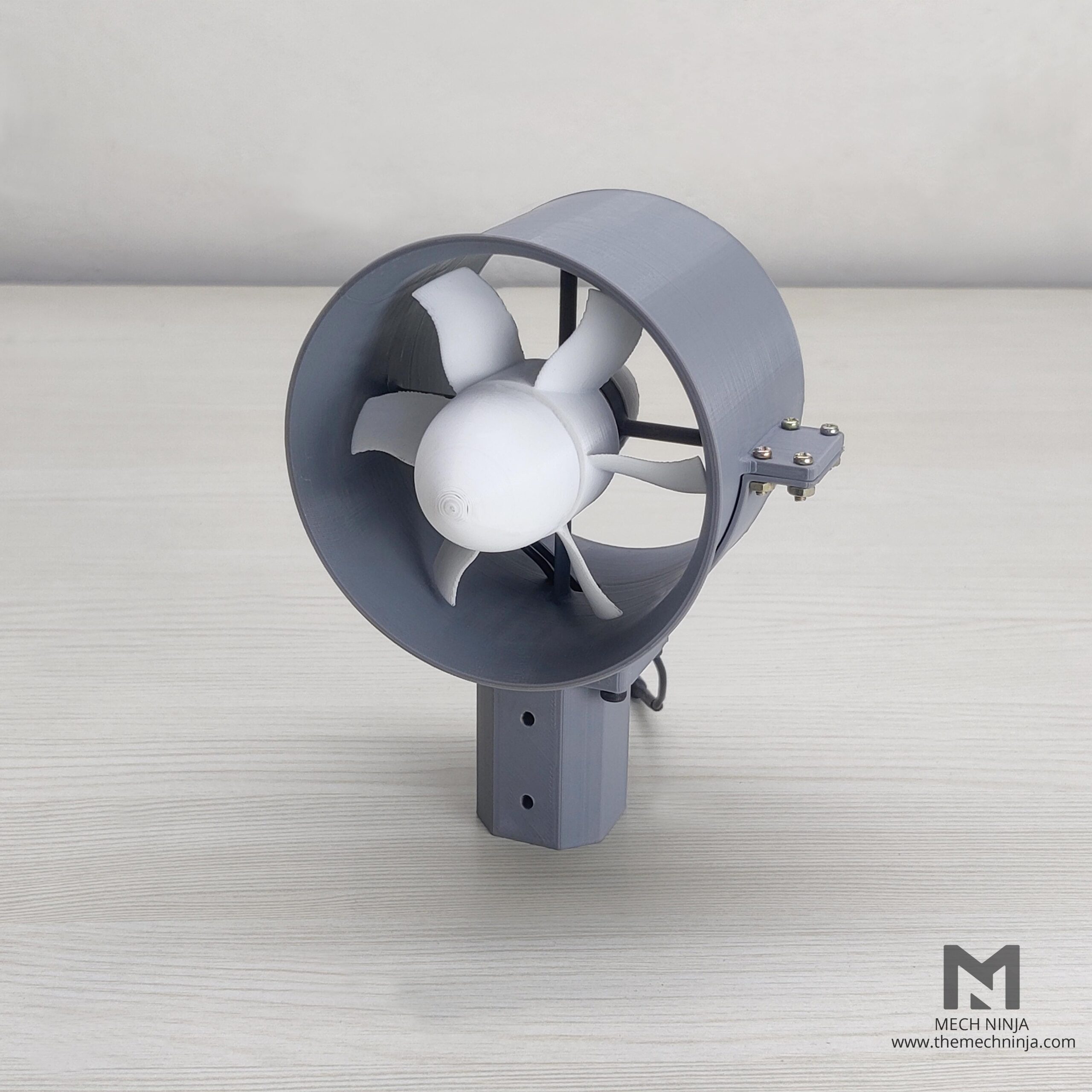

- 6 Blade Propeller

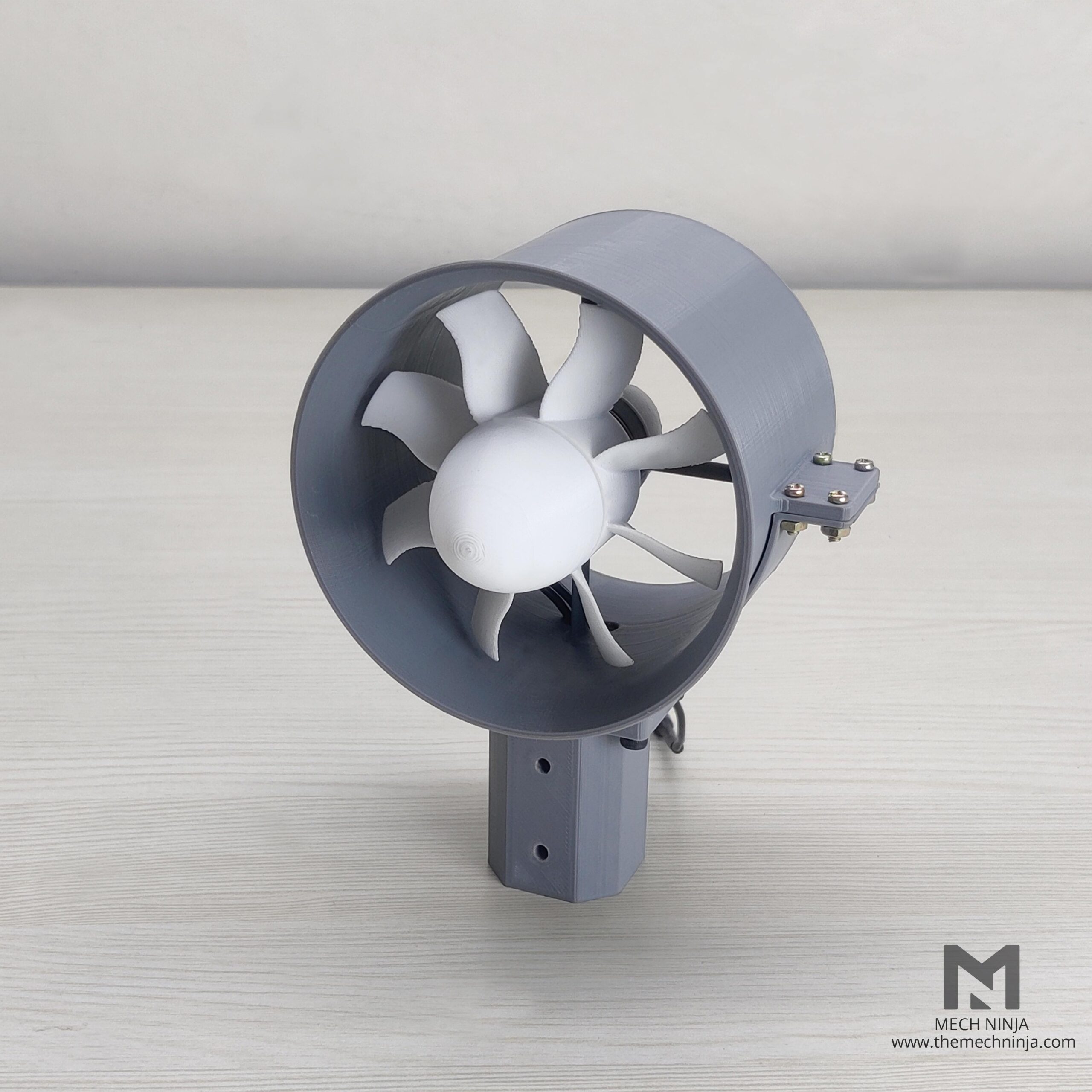

- 8 Blade Propeller

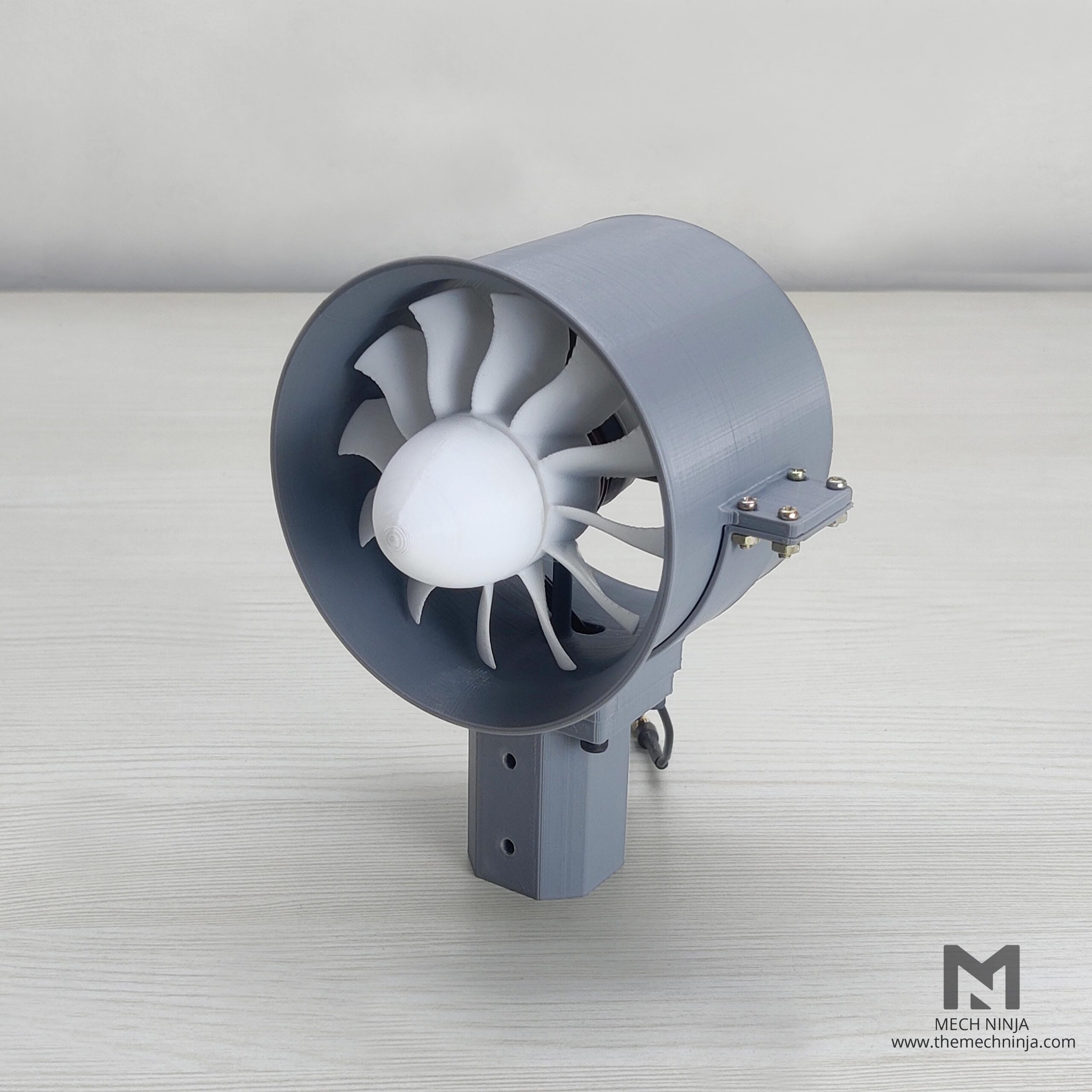

- 12 Blade Propeller
- 80mm Shell Holder
- Diffuser
- 80mm Shell
- Nozzle
- Flat Holder
The 80mm ducted fan is distributed into the above-mentioned parts so that you can easily print any part at your home with your own DIY 3D printer of minimal size i.e. 220(mm)x220(mm)x250(mm).
All the files given are complete and have been tested.
In case of any doubt, please use the Contact Us page.
Thank You.
Curious how it works? Catch the full video here
Parts Included in the STL File
Recommended Electronics
| ITEM | DETAILS | QUANTITY |
|---|---|---|
| Motor (any 1) | Racerstar 2500Kv link / DYS Sunfun 2500Kv link / Samguk 2500Kv link | 1 |
| ESC (any 1) | Hobbywing 40A ESC link / Readytosky 40A ESC link / BLHeli 35A/45A ESC link | 1 |
| Battery (any 1) | 4S Tattu 14.8V 3300mAh 60C link / 3S Tattu 11.1V 1300mAh 75C link | 1 |
| Servo Tester | Servo Tester link | 1 |
| Battery Charger (any 1) | Sky RC B6 Neo link / Imax B6 Balance link / Imax B3 Pro (2S 3S) link | 1 |
| Wattmeter | Wattmeter RC 150A link | 1 |
Necessary Accessories
| ITEM | DETAILS | QUANTITY |
|---|---|---|
| 3D Printer | 220×220×250 mm build volume | 1 |
| Nuts and Bolts | M2.5 / M3 sizes of various lengths | — |
| Accessories | Silicon wires / Cable zip tie / Heat shrink tube / Soldering iron | — |
| Motor |
Racerstar 2500 Kv Motor link DYS Sunfun 2500 Kv Motor link Samguk 2500 Kv Motor link |
| ESC |
Hobbywing 40 amp ESC link Readytosky 40 amp link BLHeli 35A/45A ESC link |
| Battery |
4S Tattu 14.8V 3300 mAh 60C link 3S Tattu 11.1V 1300 mAh 75C link |
| Servo Tester | Servo Tester link |
| Battery Charger |
Sky RC B6 Neo Charger link Imax B6 Balance Charger link Imax B3 Pro Charger (2S 3S) link |
| Wattmeter | Wattmeter RC 150A link |
| 3D Printer | 220×220×250 mm build volume |
| Nuts and Bolts | M2.5, M3 sizes of various lengths |
| Accessories | Silicon wires, cable zip tie, heat shrink tube, soldering iron |
