A flying beast on wheels — meet the Drone Tank!
3D Printed Parts
3D Printed
250*250*250 mm
Drone Shot
Open HD System
Tank Movement
Close Up View
Camera Tilt Movement
Camera LED
5MP Raspberry Pi Camera
Raspberry Pi Camera NOIR V2
Drone Night Movement
Tank Night Movement

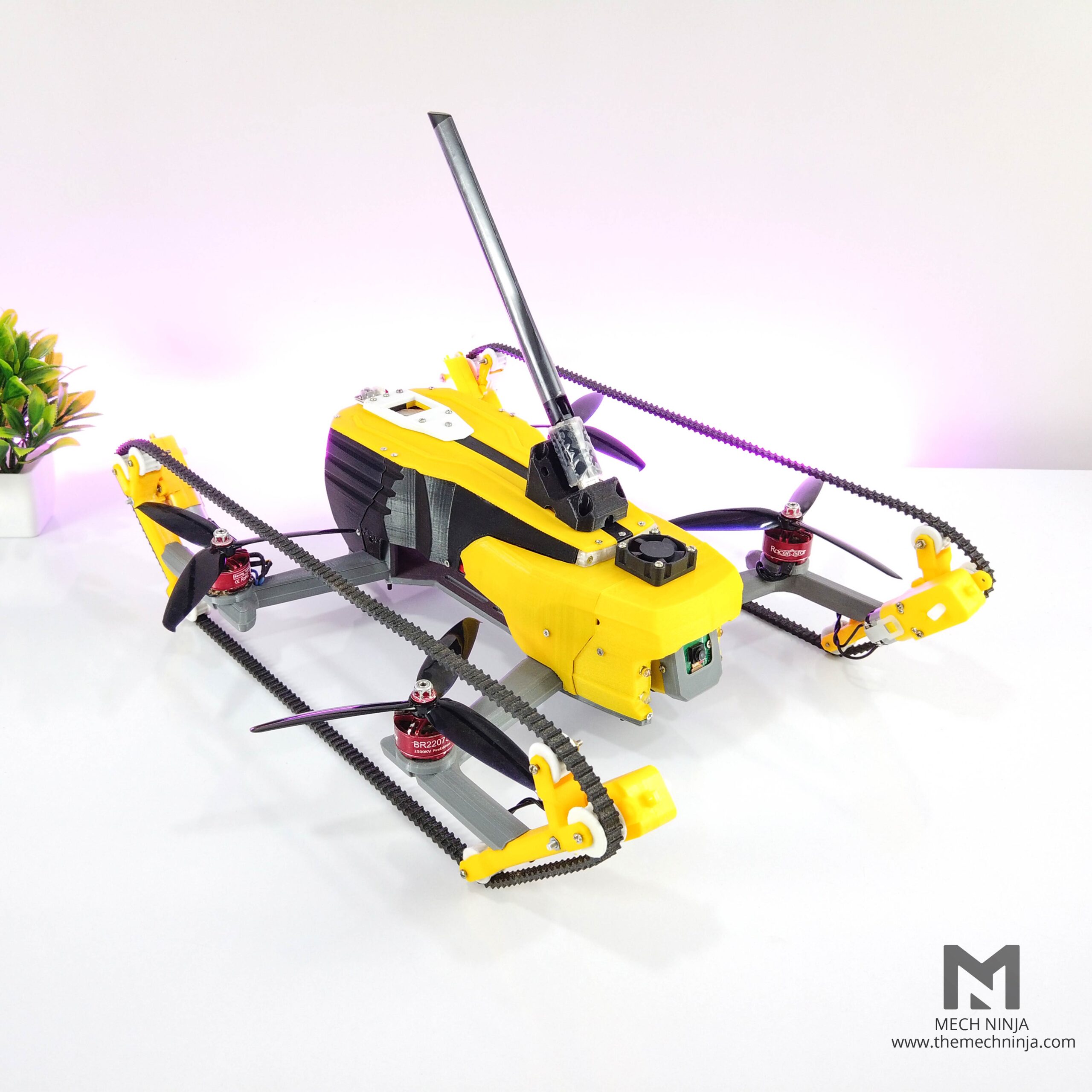

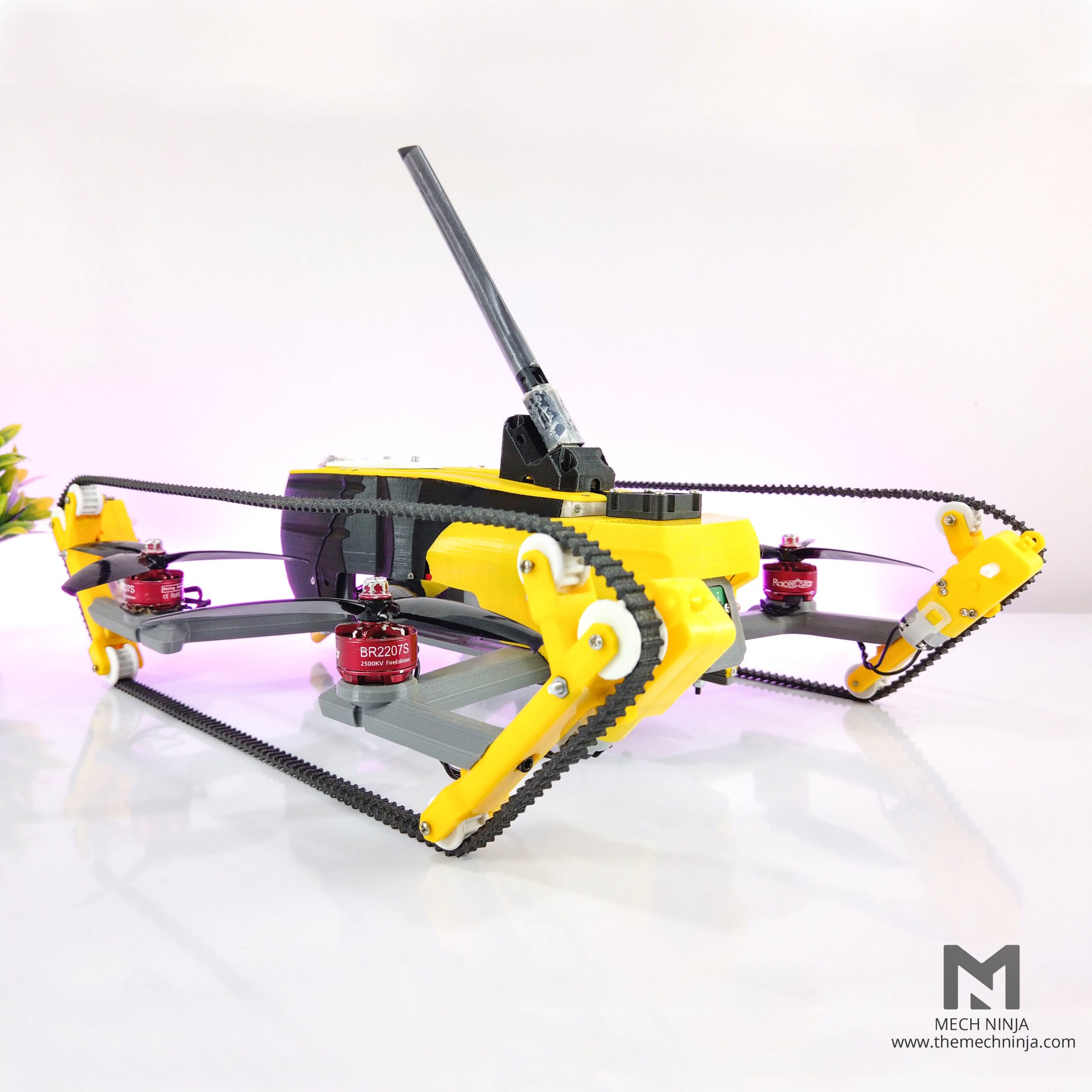

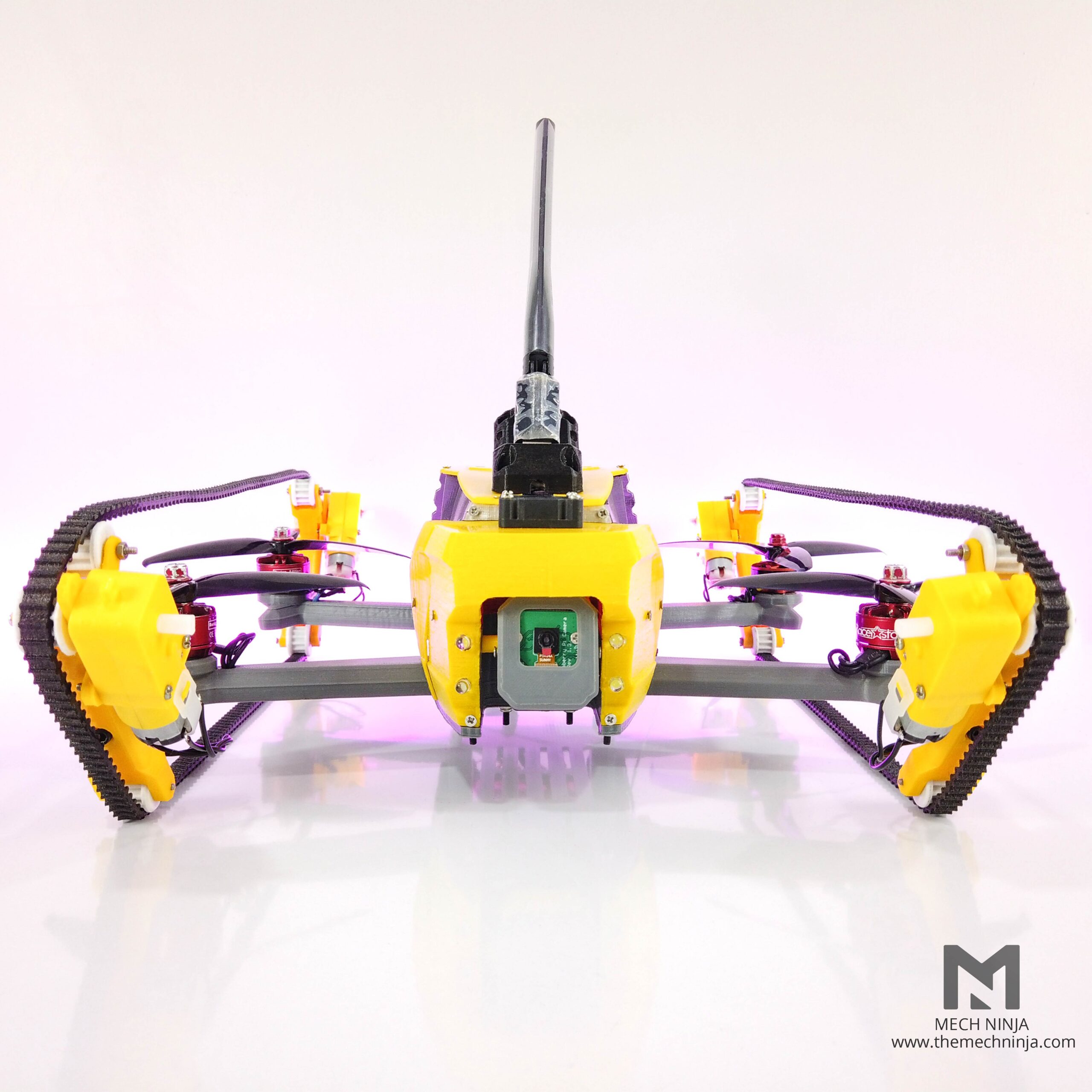

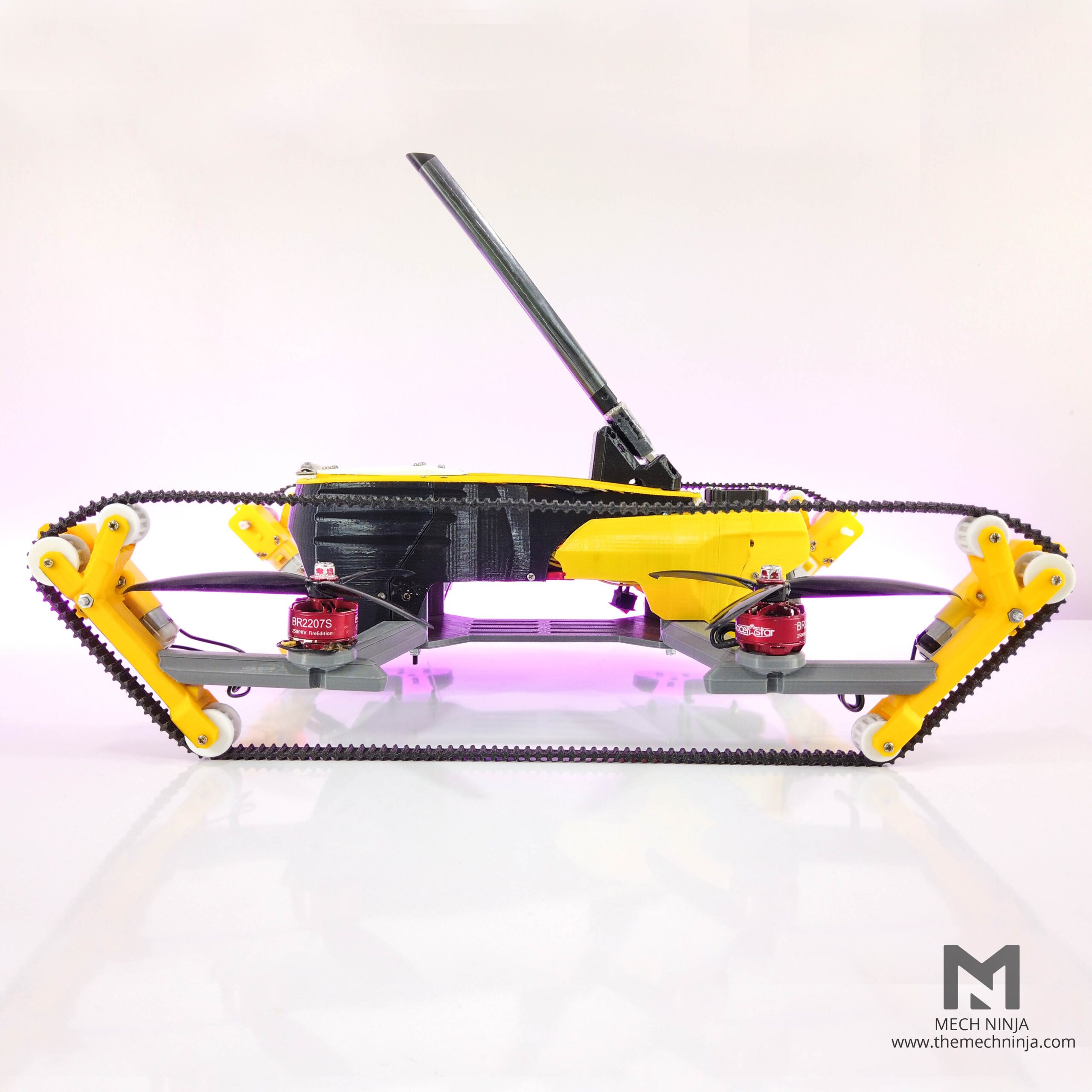

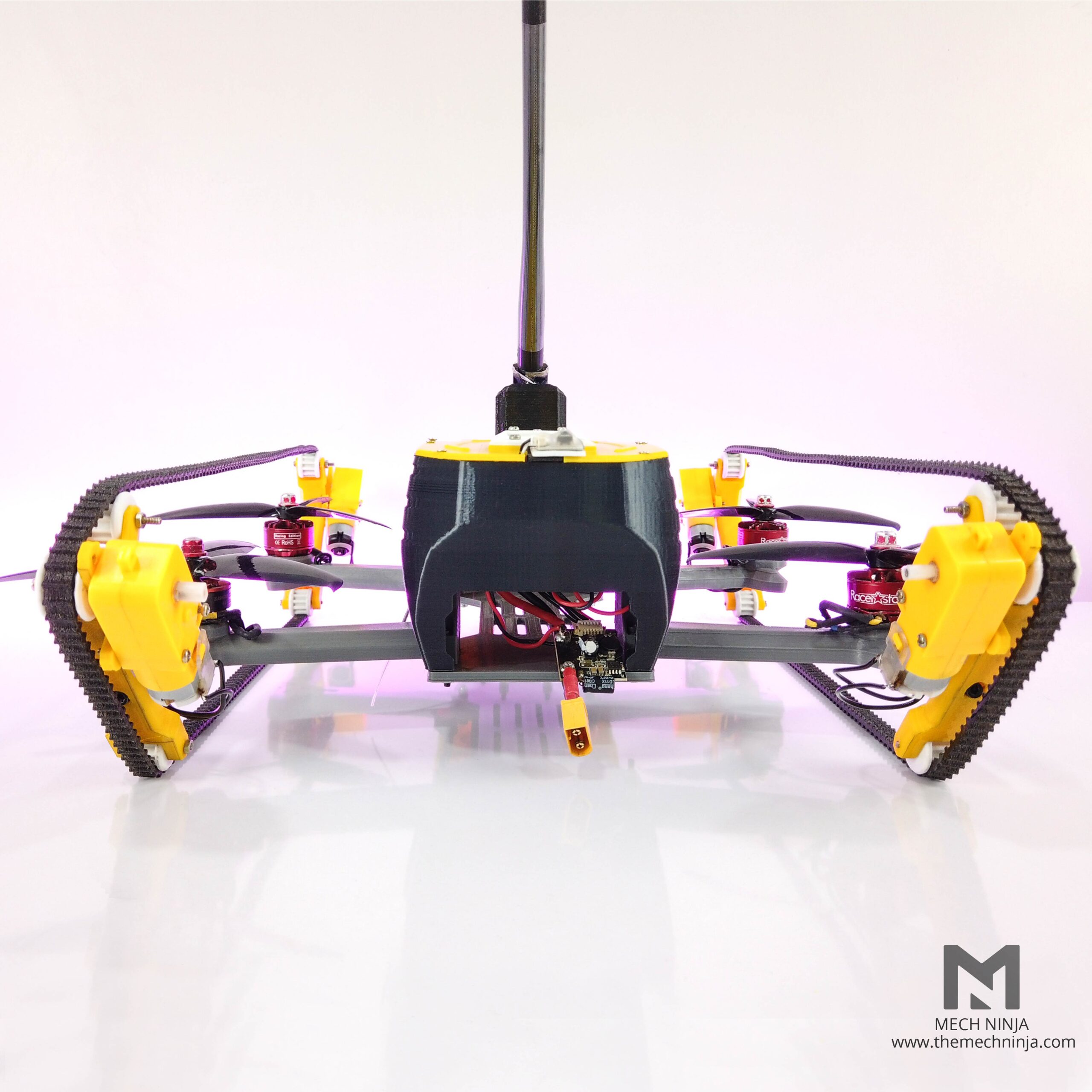

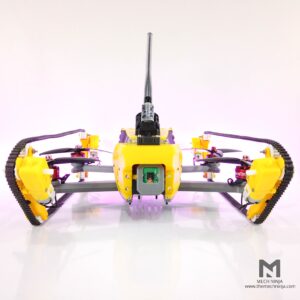

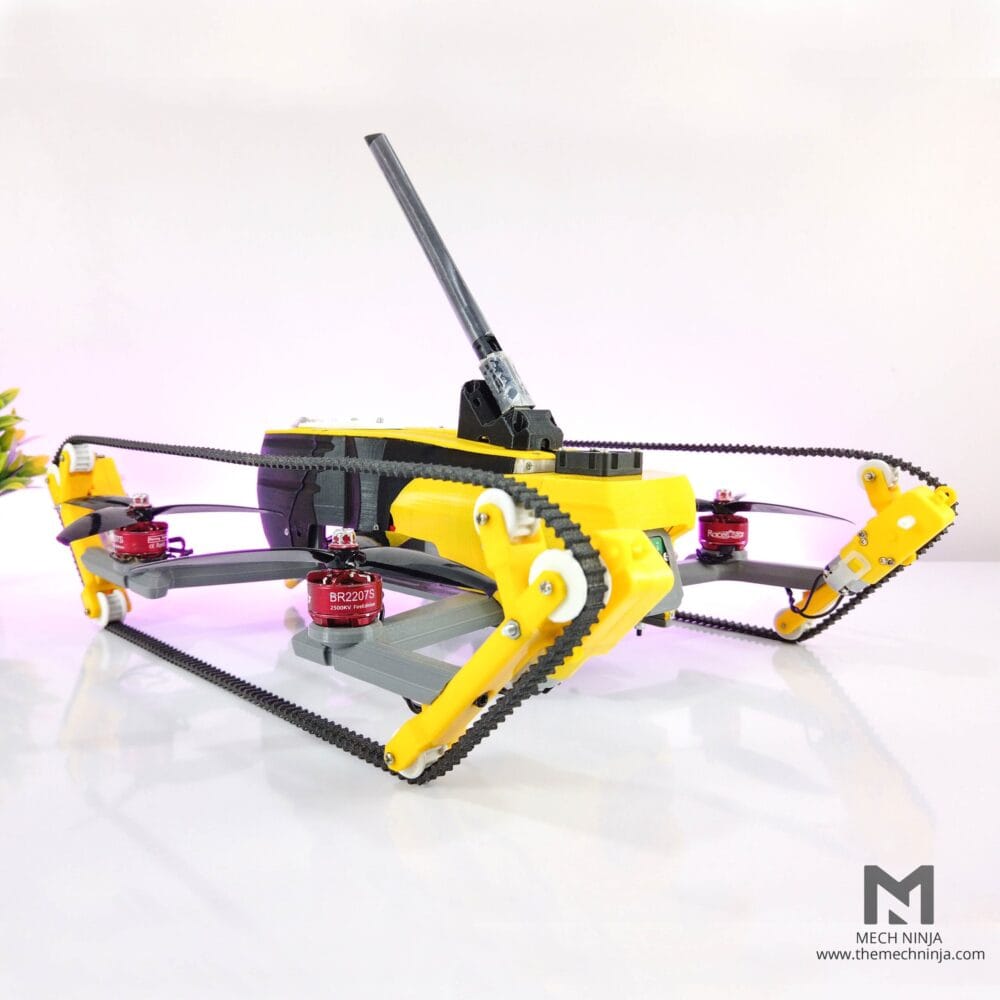

This is a quadcopter tank that not only flies but also runs on land. It is completely 3D printed and assembled. It has a real-time open HD camera that provides real-time footage. It has track belts for moving in off-road conditions. This drone is for the hobbyist who likes to make cool stuff.
If you don’t have a 3D printer and would like a fully assembled model or a kit, send me a message and I’ll be more than happy to discuss 🙂
Checkout the Youtube Video
Drone System
| Motor ×4 | Racerstar 2500Kv link DYS Sunfun 2500Kv link Samguk 2500Kv link |
| Propeller ×2pair | 6045 Tri Blade link 6042 Tri Blade link 6030 Tri Blade Folding link 5055 Tri Blade link 5152 Tri Blade link 51466 Tri Blade link 5135 Tri Blade Folding link |
| ESC ×4 | BLHeli 35A/45A link |
| Flight Controller | CUAV Nano 7 link Radiolink Pixhawk link |
| Transmitter & Receiver | 10 Ch FS-i6S link |
| Power Distribution Board | 100A PDB link Matek PDB link |
| Battery | 4S 3300mAh 60C link |
| Battery Charger | Sky RC B6 Neo link Imax B6 Balance link Imax B3 Pro (2S 3S) link |
Tank System
| Buck Converter | LM 2596 link |
| Gear Motor ×2 | 9V 150 RPM link |
| Motor Driver | L298 link |
| Microcontroller | Arduino Nano link |
Note :-
OpenHD is a complex system and requires an experienced person to deal with. If you want a hassle-free and economic option, go for the above-mentioned analog FPV Transmission, or you can take the risk and work on the digital transmission OpenHD.
OpenHD Air Unit
| Pi Zero | Pi Zero W link |
| Camera | 5MP Pi Camera link |
| Flex Cable | Cam Flex Cable link |
| Switch | Rocker Switch link |
| Buck Converter ×2 | LM 2596 link |
| USB Connector | Female USB link |
| SD Card | 32GB Micro SD link |
OpenHD Ground Unit
| Raspberry Pi | Pi 4 (4GB) link |
| Display | 7” Wave Share link |
| BMS | 2S 20A link |
| Buck Converter | LM 2596 link |
| Battery Cell ×2 | 18650 Rechargeable link |
| Cell Holder | 2 Cell Case link |
| Switch | Rocker Switch link |
| Antenna ×2 | AC1300 T3U Plus link |
| 3D Printer | 220×220×250 mm build volume |
| Nuts and Bolts | M2.5, M3 size of various lengths |
| Accessories | Cable zip tie, heat shrink tube, soldering iron |
