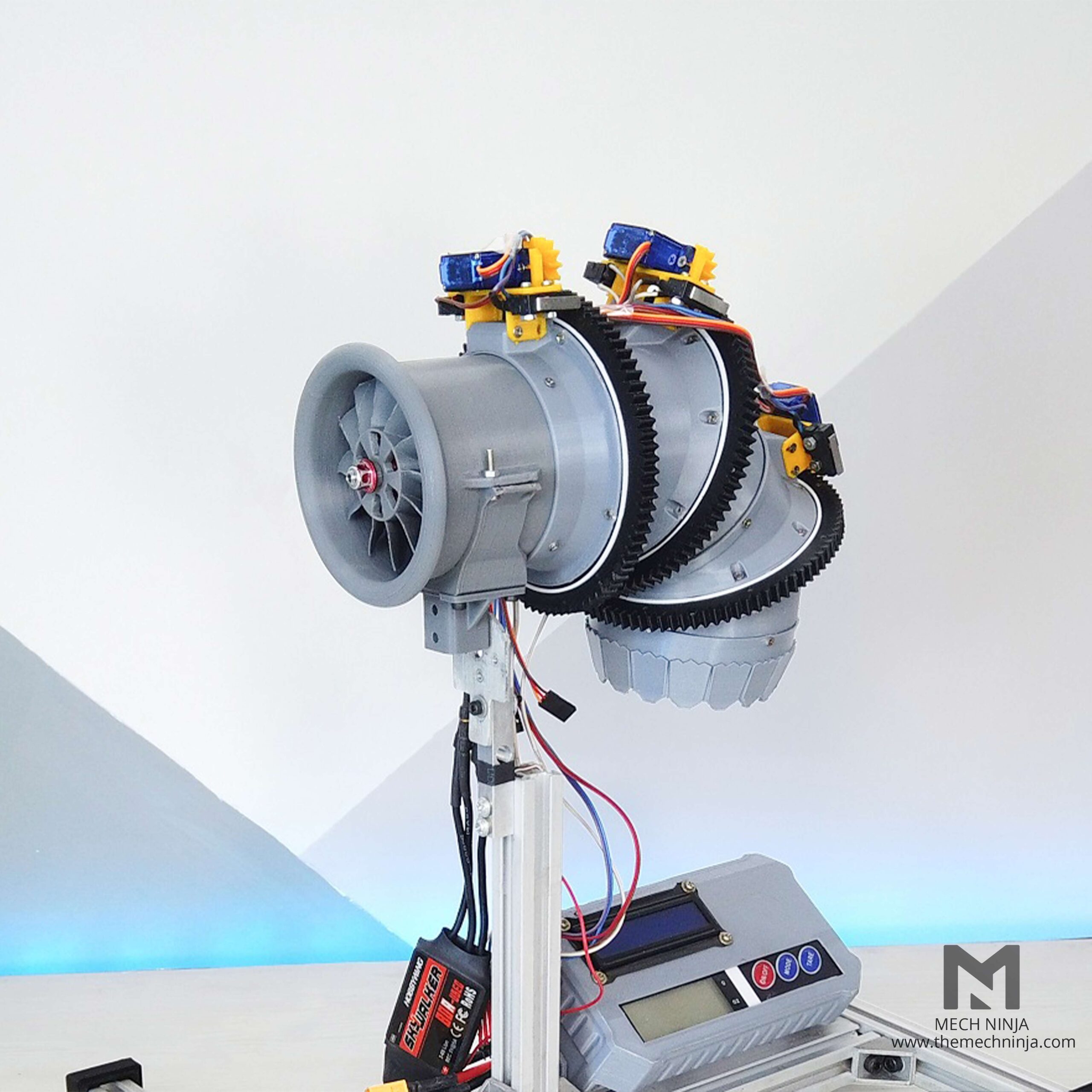

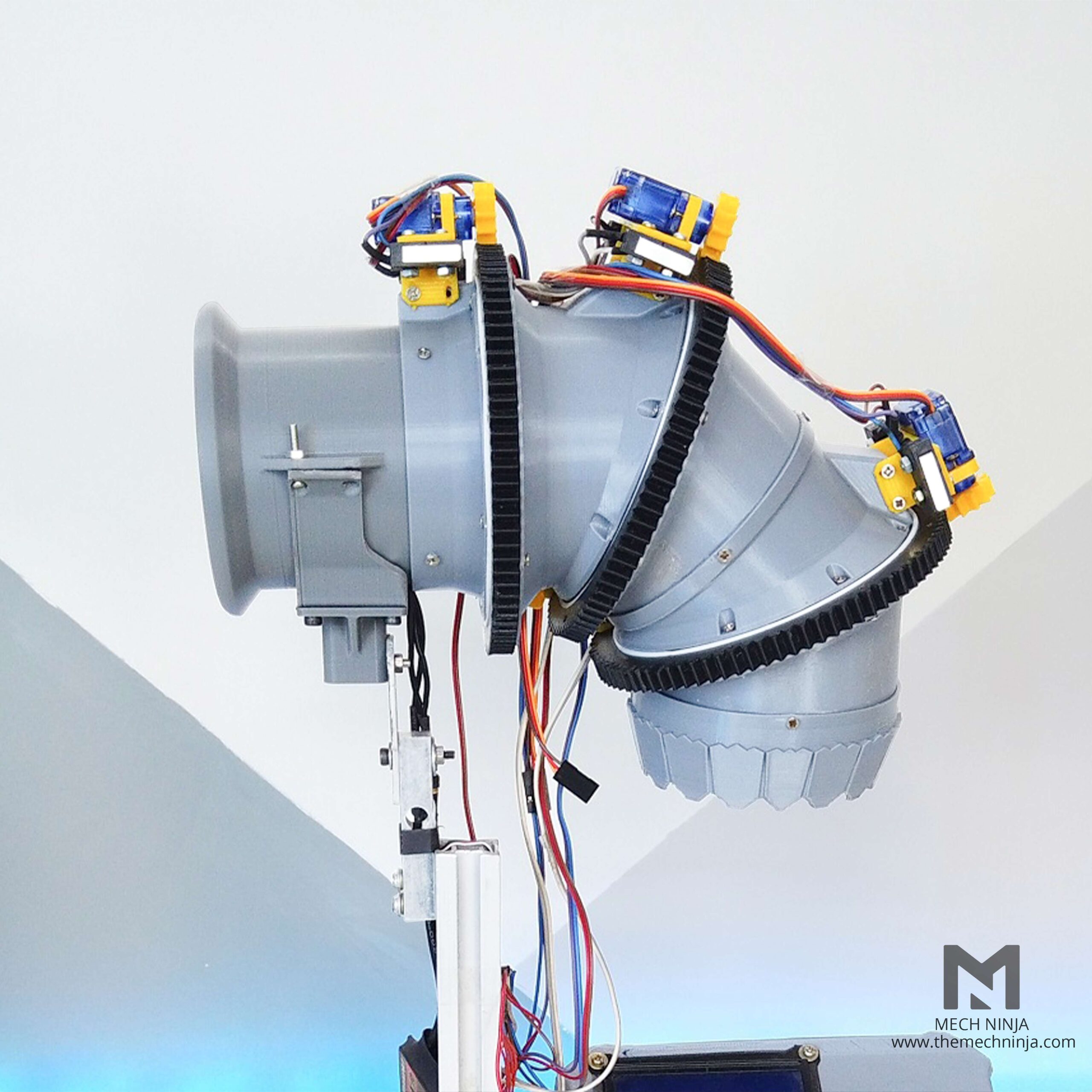

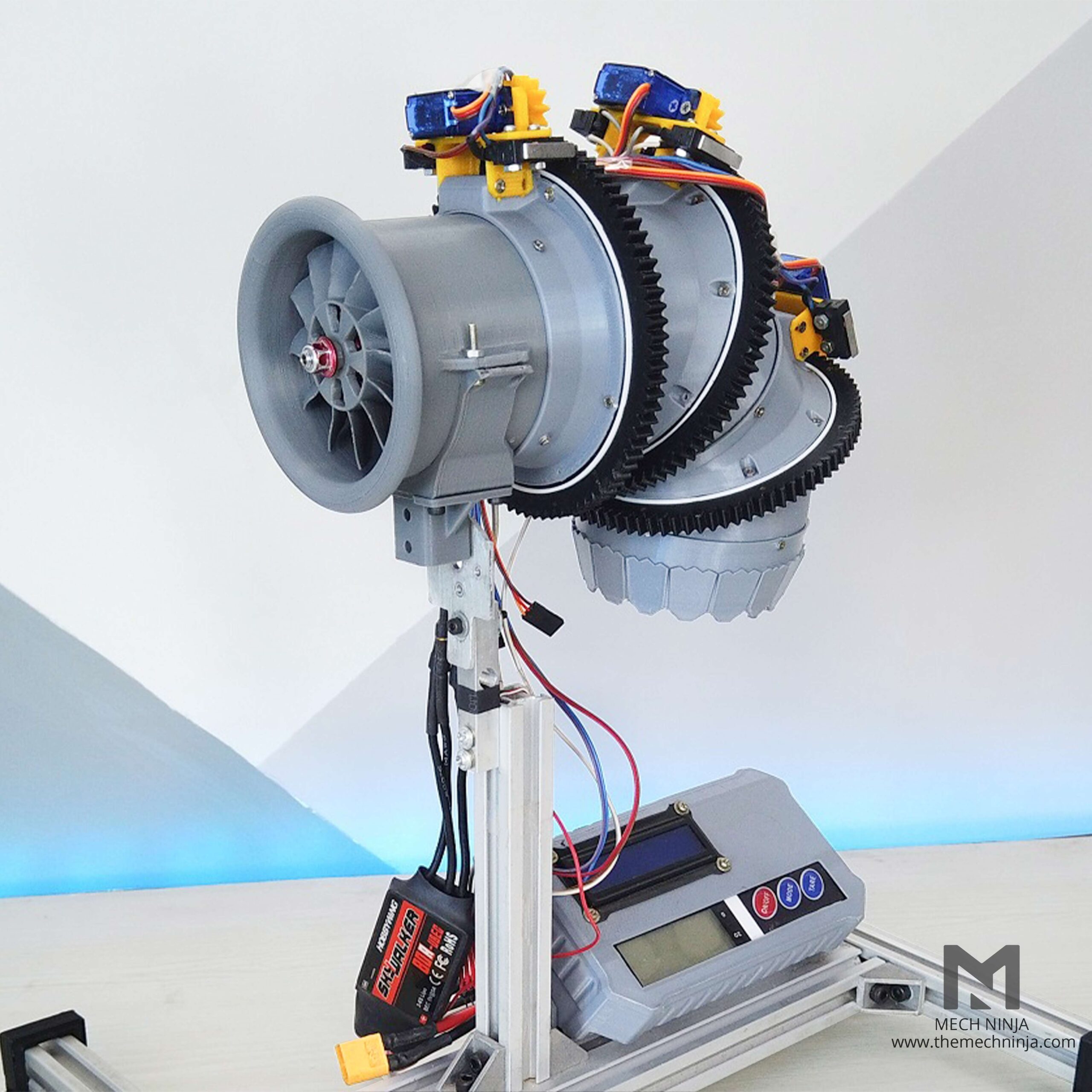

This 3D-printed F-35B style swivel nozzle features dual servos for full rotation and a dedicated servo for tilt control, enabling realistic thrust vectoring. Rigorously tested at full propeller throttle, it delivers precision movement for advanced RC jet projects.
Core Functionality
- 3D-printed F-35B style swivel nozzle enabling vertical and horizontal thrust redirection using three servos: two for rotation, one for tilt control.
Designed for realistic thrust vectoring in advanced RC jet projects and DIY aircraft.
Full-throttle propeller test
3D Printer Required
220*220*250 mm
Dual servos for full nozzle rotation
Dedicated servo for nozzle tilt
Included Files & Kit Contents
Downloadable archive contains all STL files needed (15 parts for printable assembly), source code, and detailed wiring diagrams.
Compatible hardware: All the parts link are provided below
Technical Specifications
Printing volume required: 220×220×250 mm 3D printer.
Weight of assembled nozzle: About 352 grams.
Material guidance: Suitable for common 3D printing filaments (PLA, PETG recommended).
Performance
Maximum horizontal thrust achieved: ~590g
Maximum vertical thrust when nozzle active: ~490g
Estimated thrust loss at midsection: ~100g (about 20%).
Assembly and Build Details
Assembly uses 3D-printed bearings; bolt kit: M2.5 & M3 in various lengths.
All required electronics and mechanical fittings clearly described; accessories like silicon wires, zip ties, heat shrink, and soldering iron recommended.
Testing highlights real-world efficiency, mentioning minimal thrust loss for the prototype and intent to improve for future versions.
Use Cases and Advantages
Ideal for RC enthusiasts, custom jet builders, and experimenters seeking realistic VTOL (Vertical Takeoff and Landing) capability.
Performance-tested design allows for reliable conversion of thrust with minimal loss, modeled after authentic jet mechanisms.

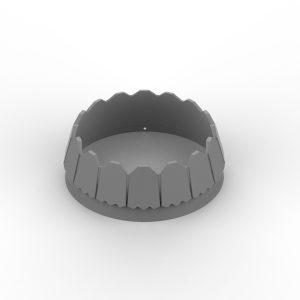

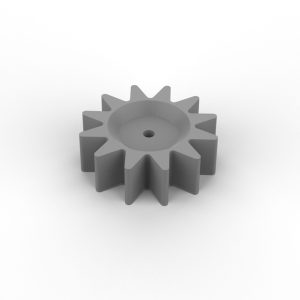

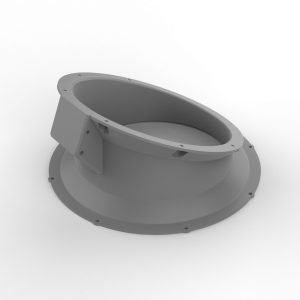

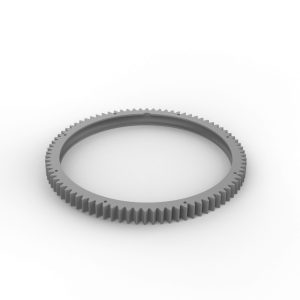

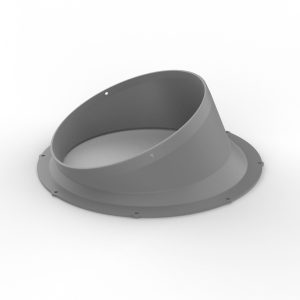

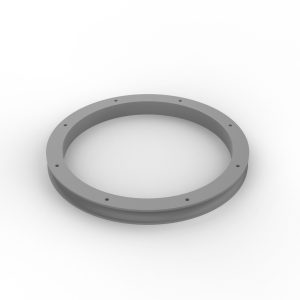

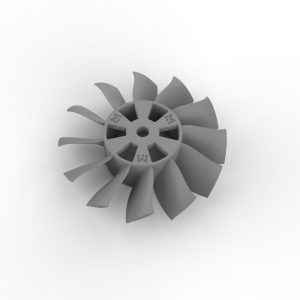

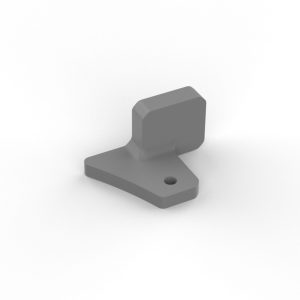

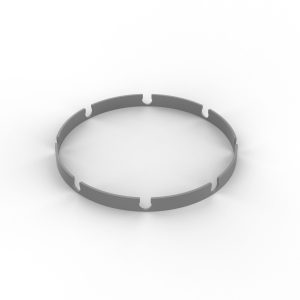

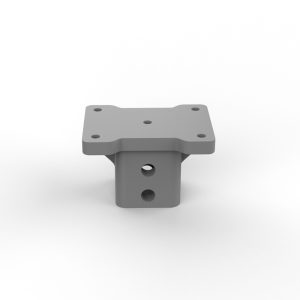

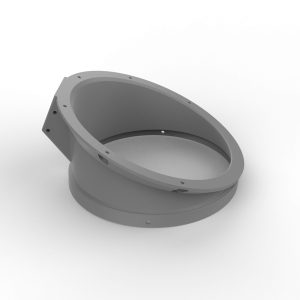

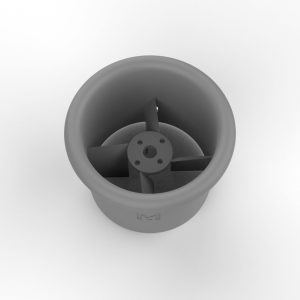

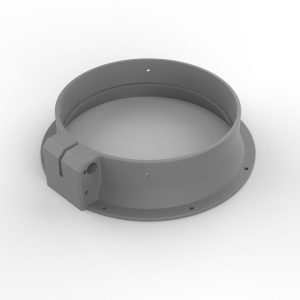

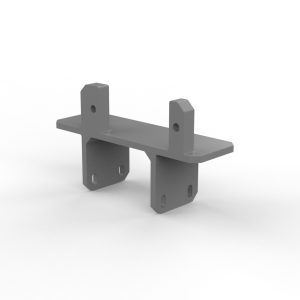

Parts Included in the STL File
This file contains all files required to print your Swivel Nozzle EDF at home
This file contains 15 STL files
The Swivel Nozzle is distributed into the parts mentioned above so that you can easily print any part at your home with your own DIY 3D printer of minimal size
Watch our DIY Swivel Nozzle Electric Ducted Fan video on YouTube.
In case of any doubt, please use the Contact Us page.
Thank You.
| Motor |
Racerstar 2500 Kv Motor link DYS Sunfun 2500 Kv Motor link Samguk 2500 Kv Motor link |
| ESC |
Hobbywing 40 amp ESC link Readytosky 40 amp link BLHeli 35A/45A ESC link |
| Servo Motor ×3 | SG90 360 Degree link |
| Endstop ×6 | Limit switch link |
| Buck Converter | LM 2596 link |
| Button ×4 | Tactile switch link |
| Microcontroller | Raspberry Pi Pico link |
| Battery |
4S Tattu 14.8V 3300 mAh 60C link 3S Tattu 11.1V 1300 mAh 75C link |
| Servo Tester | Servo Tester link |
| Battery Charger |
Sky RC B6 Neo Charger link Imax B6 Balance Charger link Imax B3 Pro Charger (2S 3S) link |
| 3D Printer | 220×220×250 mm build volume |
| Nuts and Bolts | M2.5 & M3 sizes (various lengths) |
| Accessories |
Silicon wires Cable zip tie Heat shrink tube Soldering iron |
