3D Printable 70mm Electric Ducted Fan STL Files

This file contains all files required to print the 70mm Ducted Fan at home.

Total Printing Volume of all 4 Files: 62,185 mm³

This file contains 4 STL files i.e.

1. 70mm Propeller – 12 Blades
2. Outer Casing Holder
3. Outer Casing
4. Flat Holder

The 70mm ducted fan is distributed among the parts mentioned above so that you can easily print any part at home with your DIY 3D printer of minimal size, i.e., 220 mm x 220 mm x 250 mm.

All the files given are complete and have been tested.

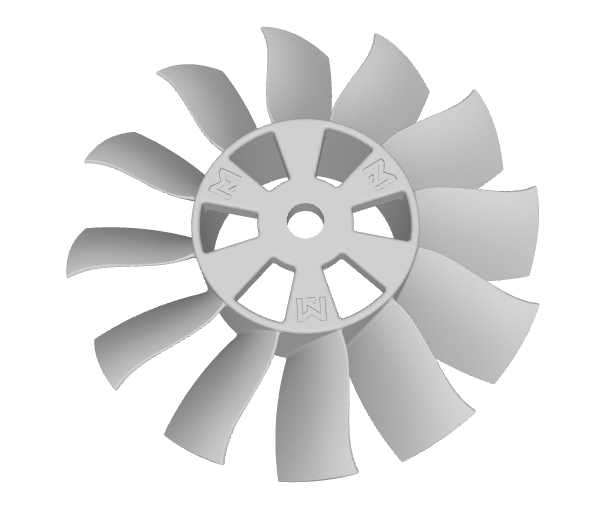

1.) 70mm Propeller – 12 Blades

• Volume: 7,967 mm³
• Dimensions (LBH): 67 x 67 x 18 mm

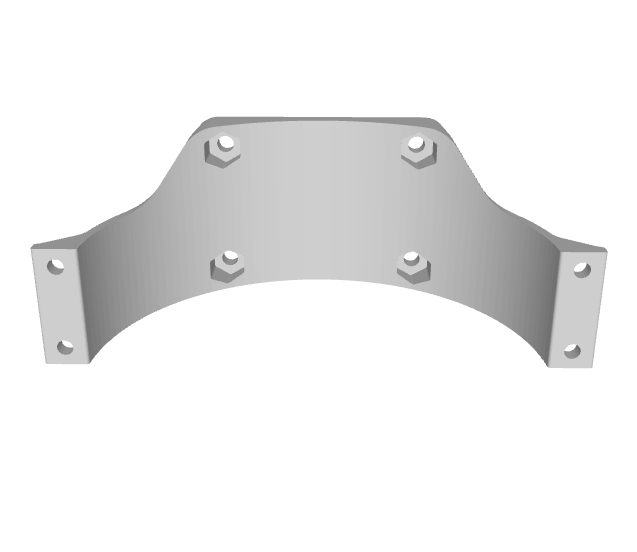

2.) Outer Casing Holder

• Volume: 10,686 mm³
• Dimensions (LBH): 73 x 73 x 32 mm

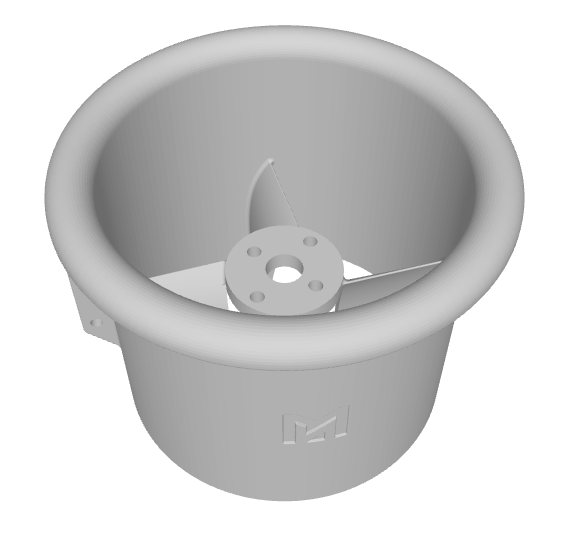

3.) Outer Casing

• Volume: 43,532 mm³
• Dimensions (LBH): 87 x 87 x 65 mm

4.) Flat Holder

• Volume: 43,532 mm³
• Dimensions (LBH): 42 x 45 x 30 mm

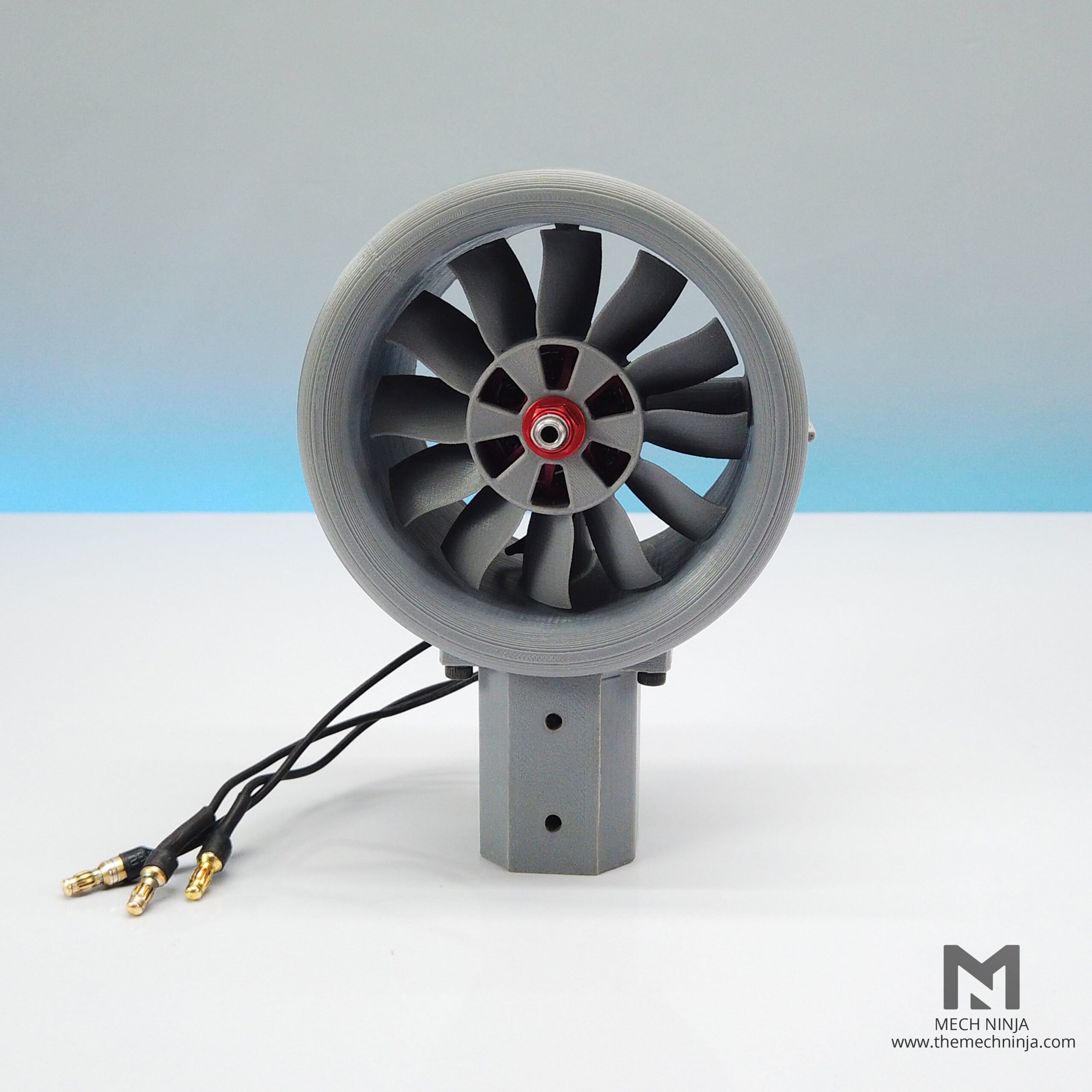

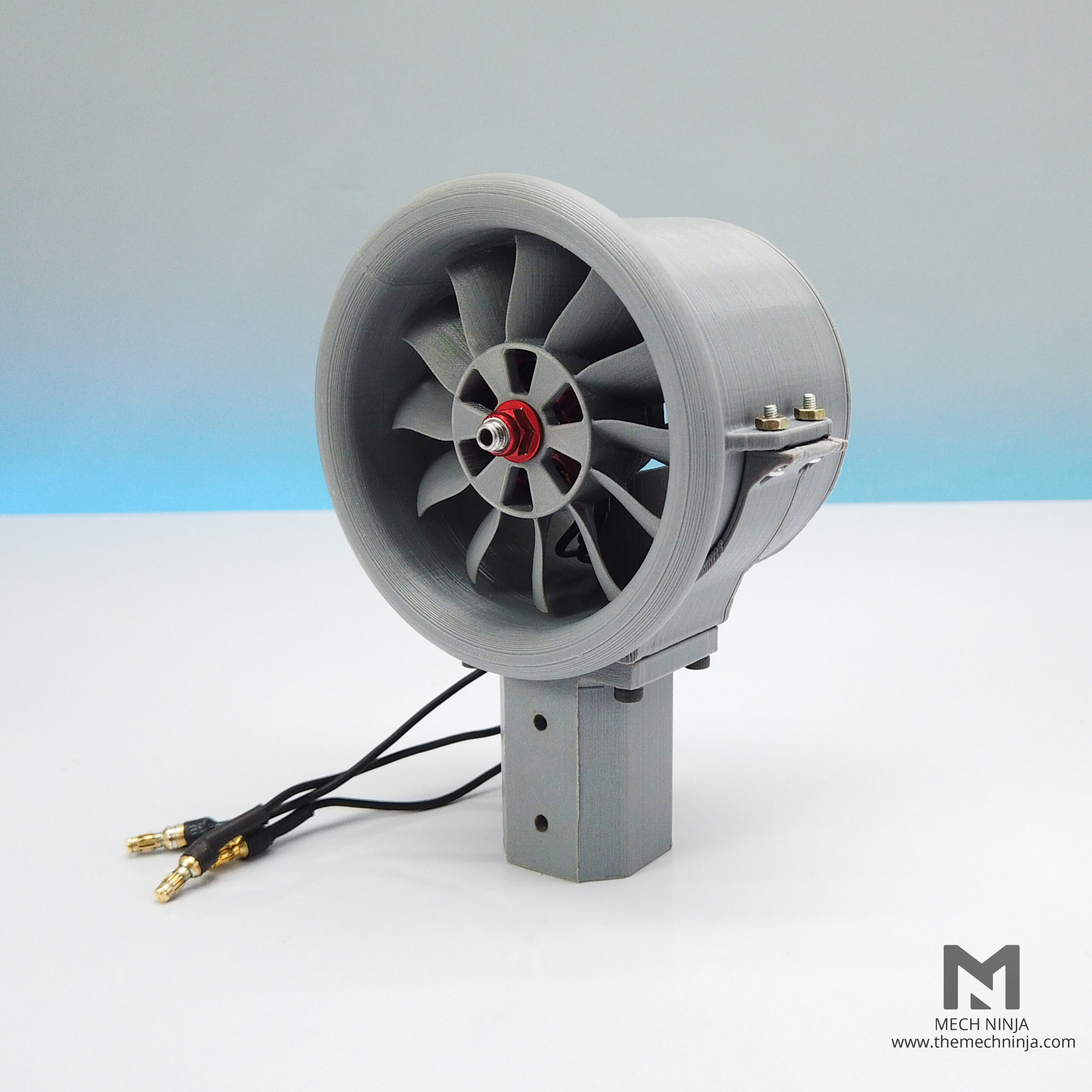

Watch the DIY 70 mm Electric Ducted Fan assembly and test video on youtube.

If you have any questions, please use the Contact Us page.

Thank You.
