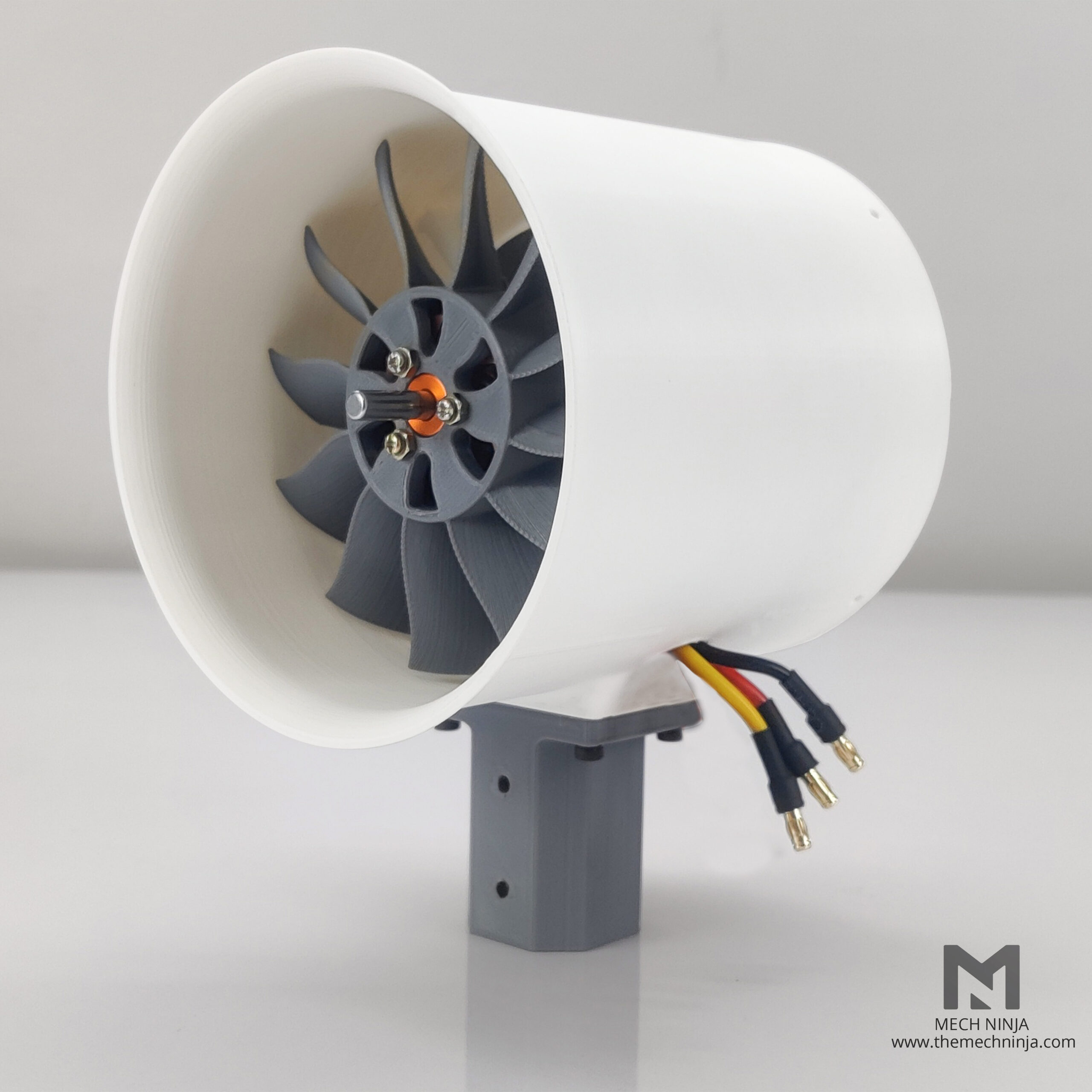

DYS Motor 100mm Ducted Fan Single Propeller STL

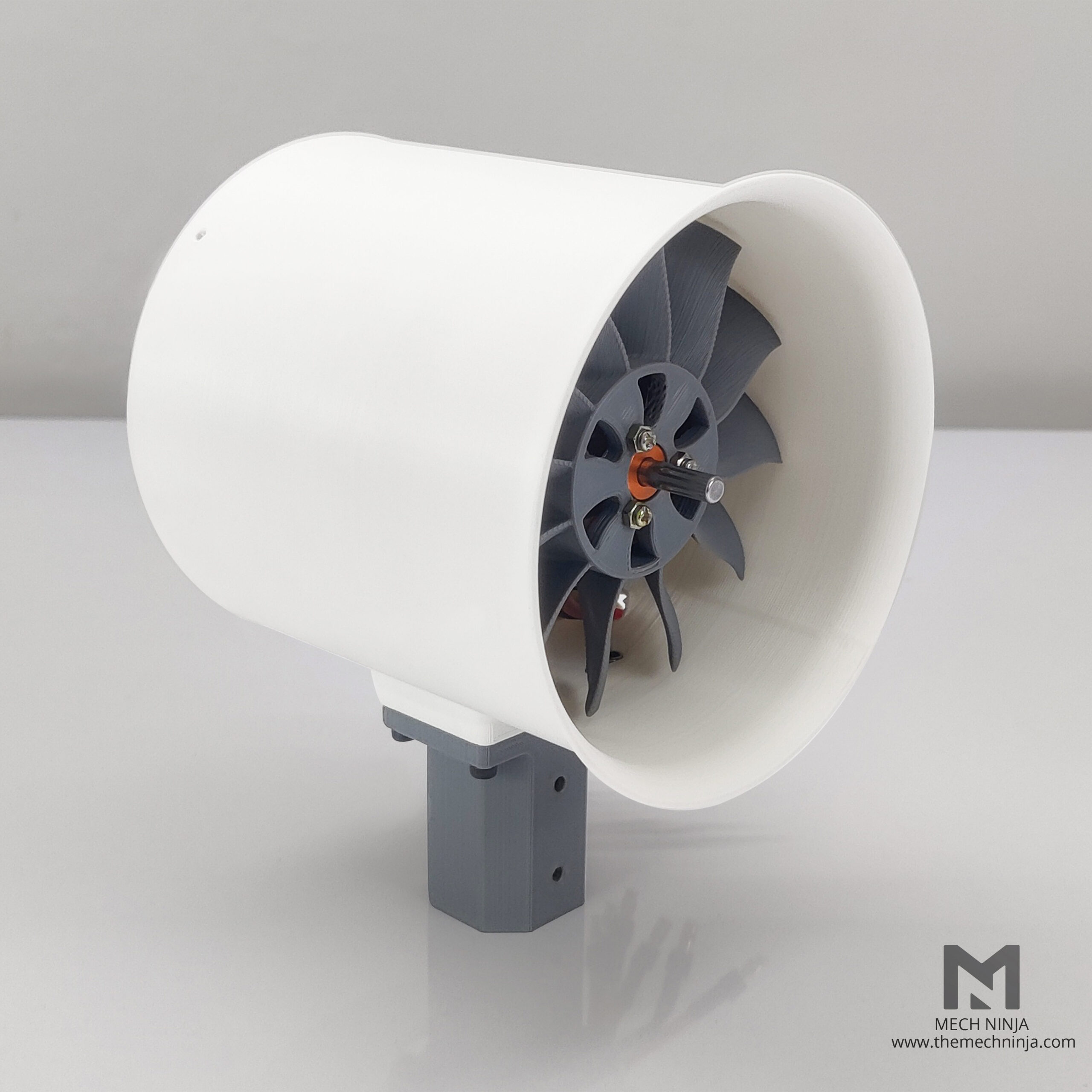

DYS Motor 100mm Ducted Fan Single Propeller STL - Image 2

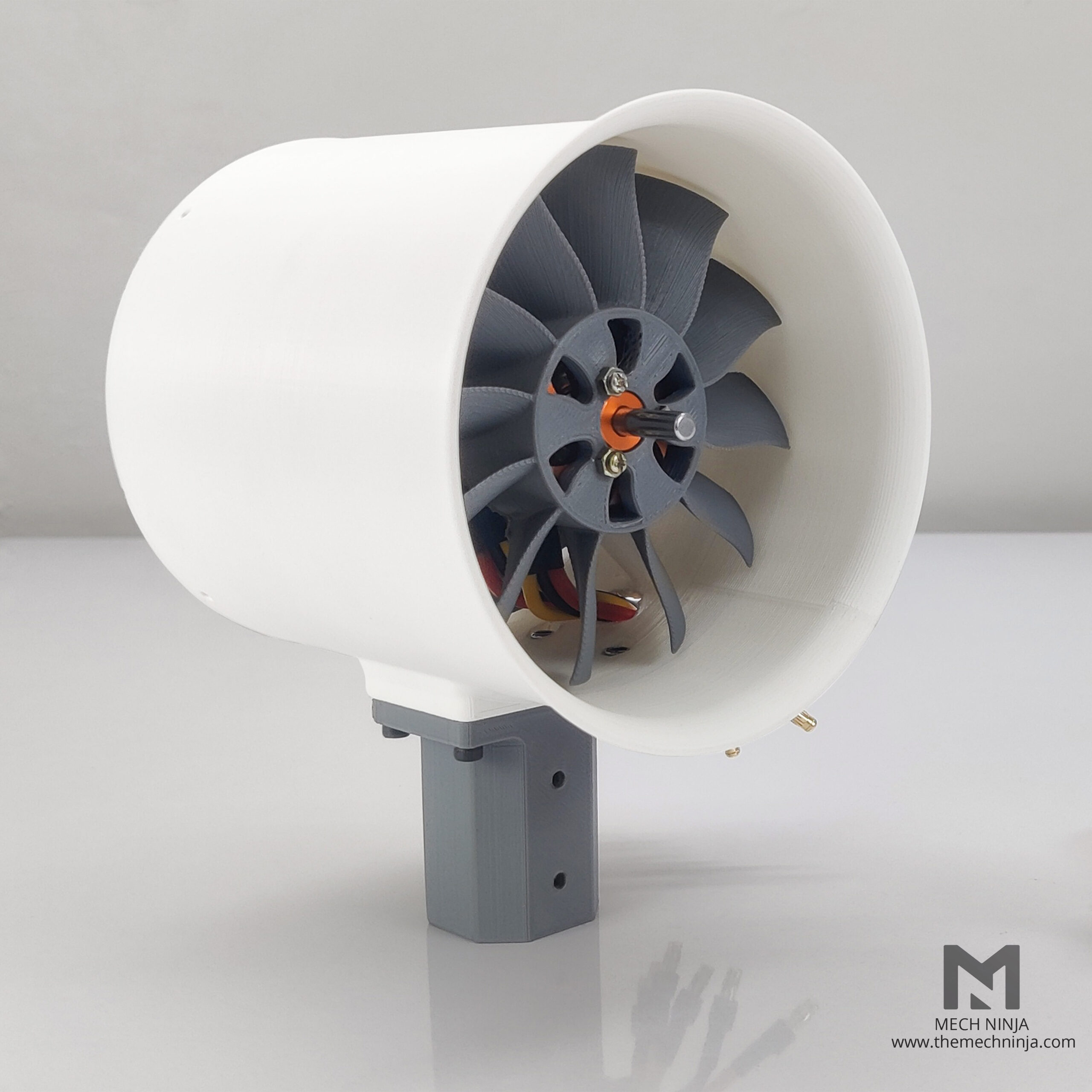

DYS Motor 100mm Ducted Fan Single Propeller STL - Image 3

DYS Motor 100mm Ducted Fan Single Propeller STL

Rated 4.75 out of 5 based on 4 customer ratings
(4 customer reviews)

$ 5.00

Print Volume Required220 × 220 × 250 mm
Material TypePLA / ABS (recommended: PLA+)
Printed Parts Count5
Assembly MethodBolted Assembly with Screw Fasteners
Electronics RequiredMotor, ESC, Battery
Dimensions120 × 110 × 110 mm
EDF Fan Diameter100 mm (12-blade configuration)
Motor CompatibilityDYS 1000, DYS 1700, or 1000 KV Drone Motor
Recommended Use CaseEducational Builds, Test Benches, Small RC Planes
Recommended Skill LevelIntermediate

License – Personal use only. Redistribution or resale of files is not permitted.
(View License)

Guaranteed Safe Checkout
  • UPI ICON
🛒 Purchased by 9 Makers
Support removal
3D Printed
250*250*250 mm
DYS D3536 1000 KV BLDC Motor
3S Battery
4S Battery
DYS D3530 1700kv BLDC Motor
3S Battery
4S Battery
Powerful Exhaust
Powerful Exhaust
Powerful Exhaust
Parts Included in the STL File
Outer Shell
Outer Shell
Front Propeller 3530 1700kv
Front Propeller 3530 1700kv
Front Propeller 3536 1000kv
Front Propeller 3536 1000kv
Motor Holder
Motor Holder
Diffuser
Diffuser
EDF Mount
EDF Mount

This file contains all files required to print your own 80mm Ducted Fan at home.

The DYS motor ducted fan is distributed into the above-mentioned parts so that you can easily print any part at your home with your own DIY 3D printer of minimal size i.e. 220(mm)x220(mm)x250(mm)

Watch our DYS Motor Vs Standard Motor thrust test Youtube video

In case of any doubt, please use the Contact Us page.

Thank You.

Motor DYS 3530 1700 kv link
ESC Hobbywing 40 amp esc link
Readytosky 40 amp link
BLHeli 35A/45A ESC link
Battery 4S Tattu 14.8V 3300 mAh 60C link
3S Tattu 11.1V 1300 mAh 75C link
Servo Tester Servo tester link
Battery Charger Sky Rc B6 Neo Charger link
Imax B6 Balance Charger link
Imax B3 Pro charger (2S 3S) link
Wattmeter Wattmeter RC 150A link
3D Printer220×220×250 mm build volume
Nuts and BoltsM2.5 & M3 sizes of various lengths
AccessoriesSilicon wires, cable zip tie, heat shrink tube, soldering iron

Curious how it works? Catch the full video here

4 reviews for DYS Motor 100mm Ducted Fan Single Propeller STL

    ezcondin9
    Rated 4 out of 5
    June 2, 2024
    What's the blade angle....?
    rollyherera63
    Rated 5 out of 5
    June 2, 2024
    You should try supporting it higher up above the scale. Putting it that close to the scale will severely restrict the airflow into the fan, giving it a lower thrust output.
    ChrissDavidge1
    Rated 5 out of 5
    June 2, 2024
    How many milimeter size is this EDF ducted fan??..... 70mm or what ?
    Peter Smith
    Rated 5 out of 5
    January 29, 2023
    I was looking for a perfect duct fan to test this motor and found this. Perfect for doing thrust test for me. Thank You.
