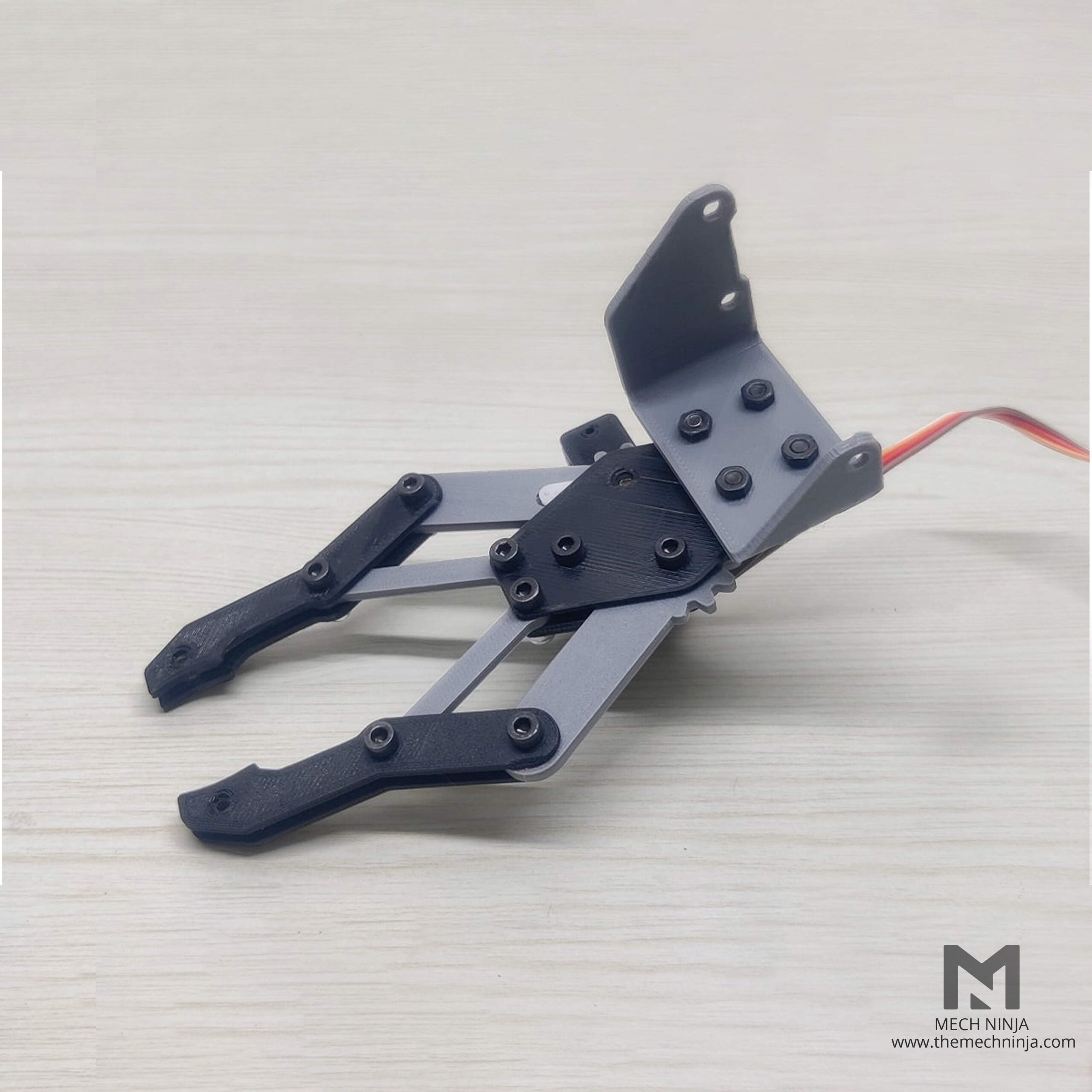

3D Printable Claw Arm For Your Arduino Car.

This “Claw Arm For Arduino Car” is a downloadable product that contains a ZIP file containing all the STL files for 3D printing your claw and Arm at home.

The ZIP folder contains 15 STL files that all are tested and printed. Details about all of them are given further in the description below.

The name of all the 15 STL files included in the ZIP folder is-

1. Arm 1
2. Arm 2
3. Arm Base
4. Arm Claw Base
5. Arm Link 1
6. Arm Link 2
7. Arm Servo Arm
8. Arm Servo Link
9. Claw Base
10. Claw Gripper
11. Claw Link
12. Claw Second Arm
13. Claw Servo Arm
14. Claw Top
15. Triangular Section

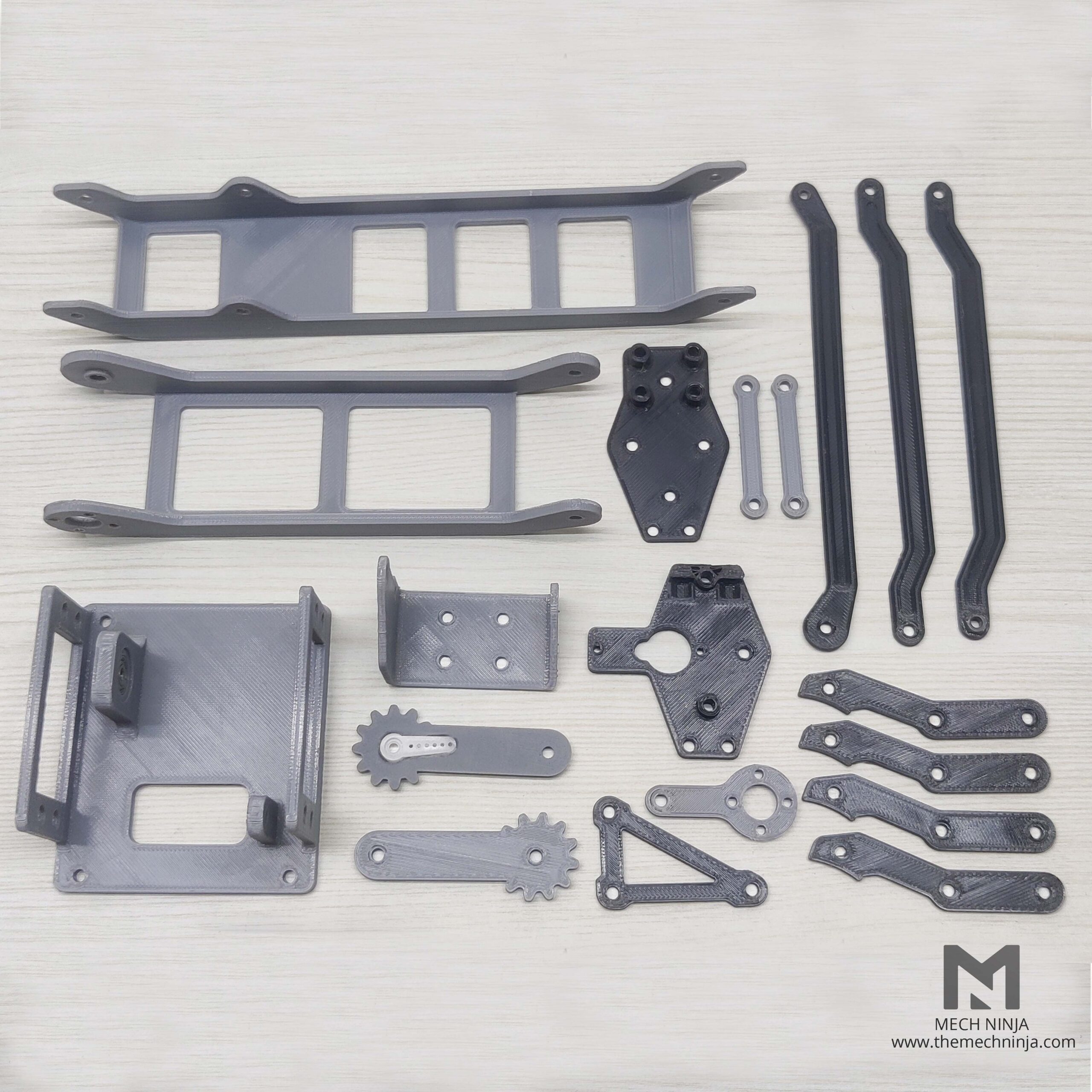

The total Print volume of all 15 STL files is 75,360 mm³, image and further details of each Claw Arm STL file is given below.

All the above files are easily printable on a 220 x 220 x 220 (mm) homemade 3D printer. If you don’t have one then you can watch our step-wise detailed guide for the same, whose link is given below.

Homemade 3D Printer | Simple DIY Under $150

Printer Settings for Claw Arm Files-

• Print speed – 60mm/sec
• Infill – 20%
• Layer height – 0.2 mm

Note- None of the parts require support so turn off the support.

Print Volume and Dimensions of each Claw Arm STL File

1. Arm 1

• Print Volume – 13,125 mm³
• Dimensions (mm) – 24 x 45 x 1472

2. Arm 2

• Print Volume – 15,909 mm³
• Dimensions (mm) – 195 x 39 x 22

3. Arm Base

• Print Volume – 21,710 mm³
• Dimensions (mm) – 75 x 66 x 33

4. Arm Claw Base

• Print Volume – 4,090 mm³
• Dimensions (mm) – 26 x 45 x 37

5. Arm Link 1

• Print Volume – 2,009 mm³
• Dimensions (mm) – 14 x 2 x 138

6. Arm Link 2

• Print Volume – 1,846 mm³
• Dimensions (mm) – 141 x 2 x 13

7. Arm Servo Arm

• Print Volume – 1,042 mm³
• Dimensions (mm) – 39 x 3 x 19

8. Arm Servo Link

• Print Volume – 2,129 mm³
• Dimensions (mm) – 15 x 2 x 140

9. Claw Base

• Print Volume – 4,259 mm³
• Dimensions (mm) – 51 x 48 x 8

10. Claw Gripper

• Print Volume – 1,109 mm³
• Dimensions (mm) – 62 x 21 x 2

11. Claw Link

• Print Volume – 625 mm³
• Dimensions (mm) – 27 x 36 x 3

12. Claw Second Arm

• Print Volume – 2,138 mm³
• Dimensions (mm) – 40 x 50 x 3

13. Claw Servo Arm

• Print Volume – 1,879 mm³
• Dimensions (mm) – 40 x 50 x 3

14. Claw Top

• Print Volume – 2,529 mm³
• Dimensions (mm) – 58 x 34 x 7

15. Triangular Section

• Print Volume – 961 mm³
• Dimensions (mm) – 43 x 2 x 28

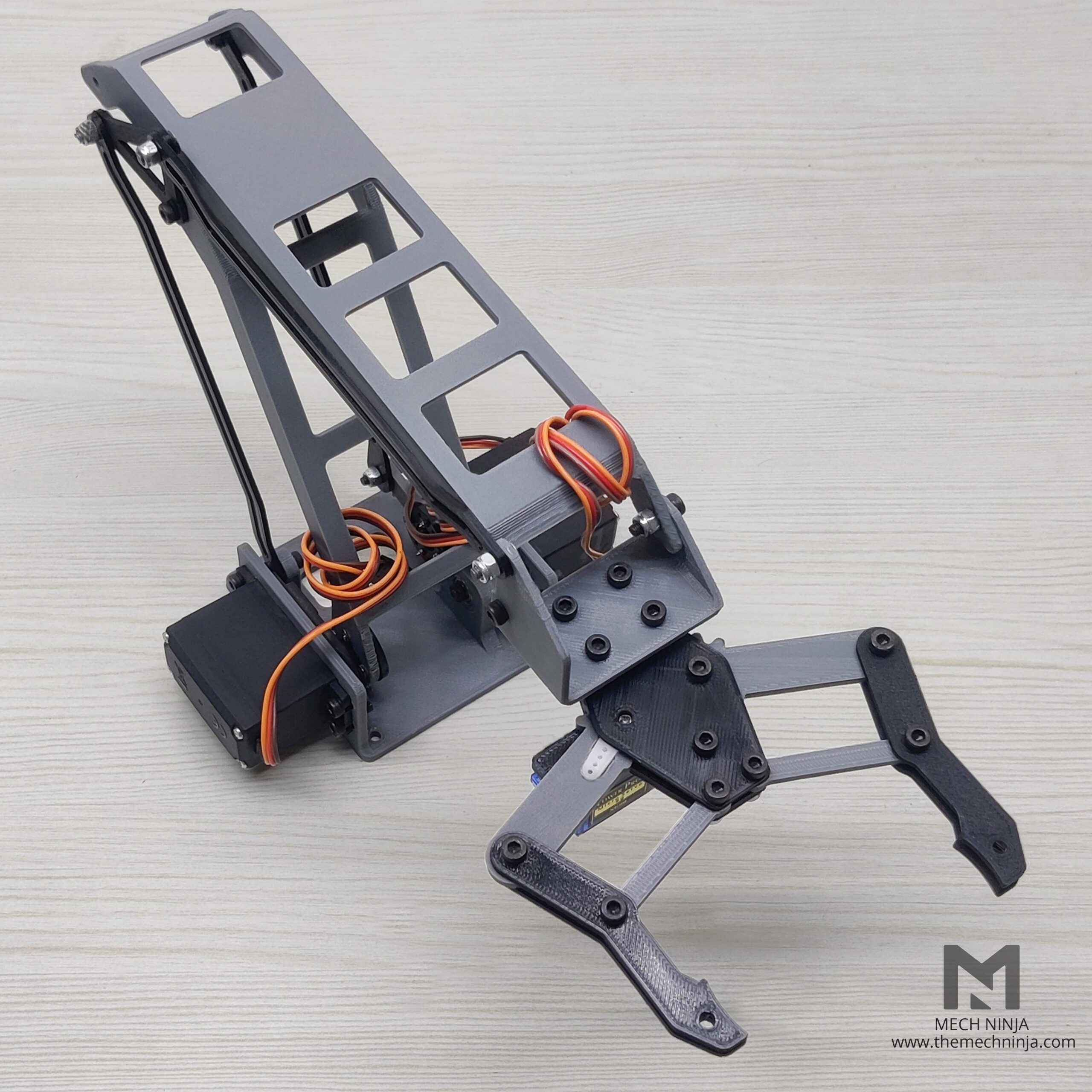

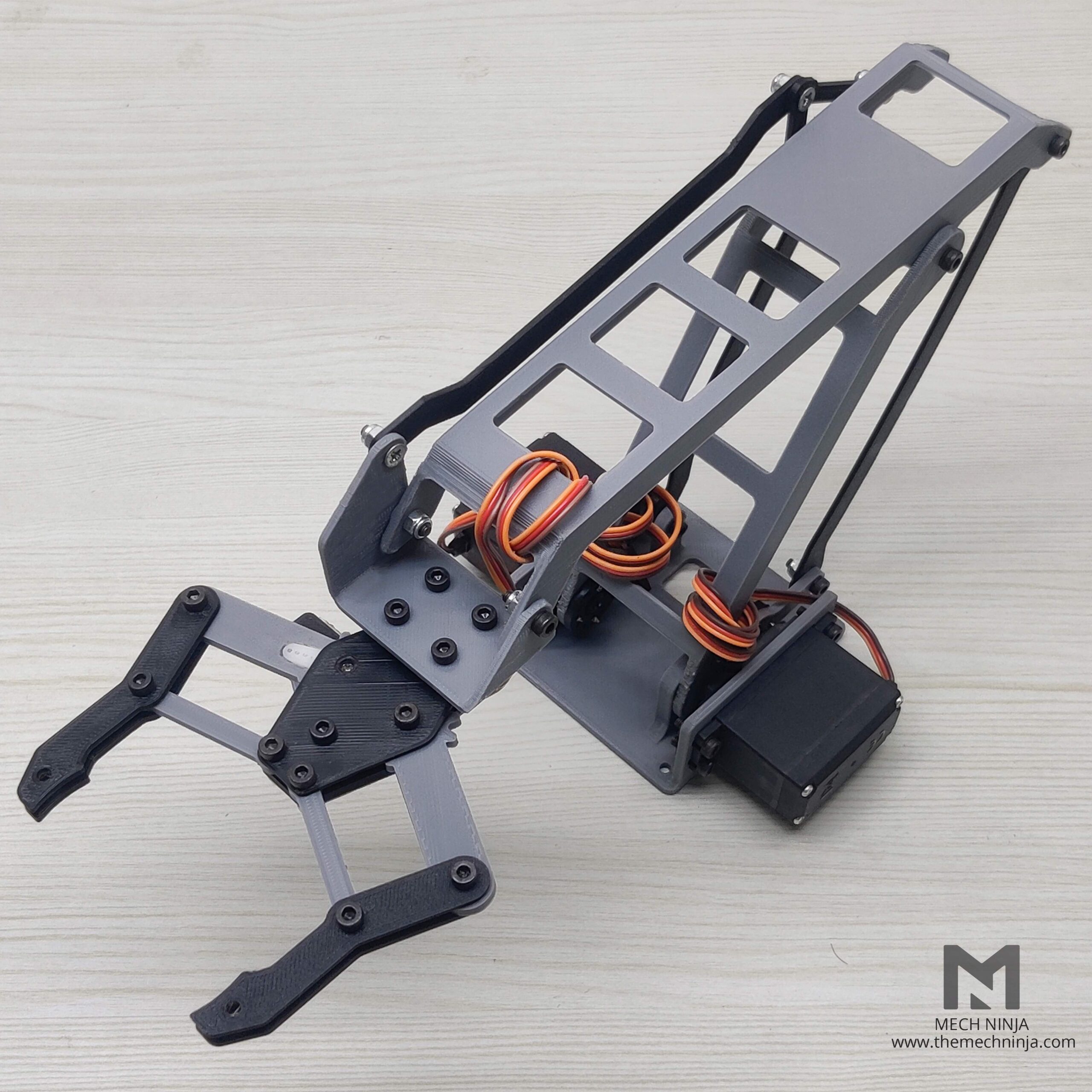

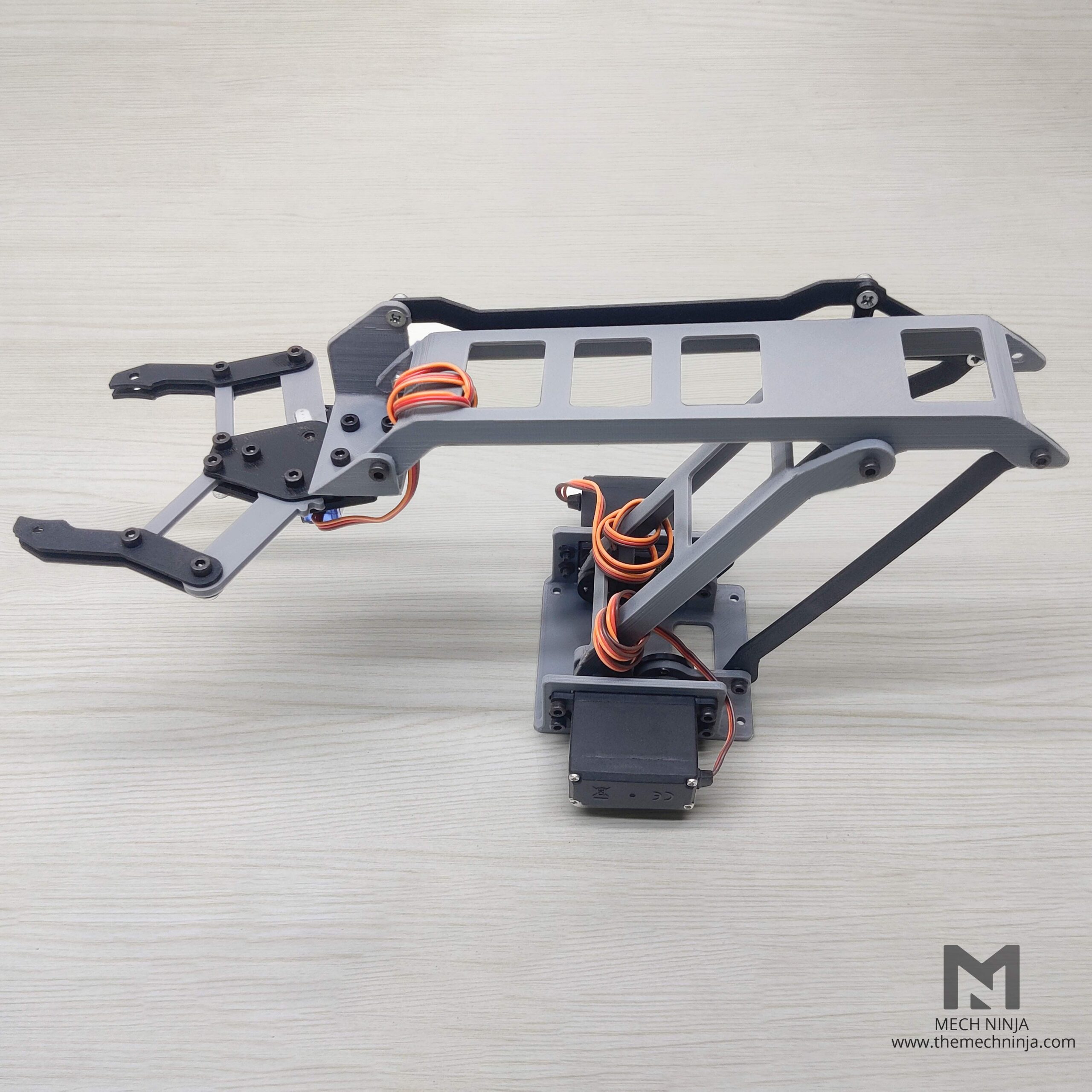

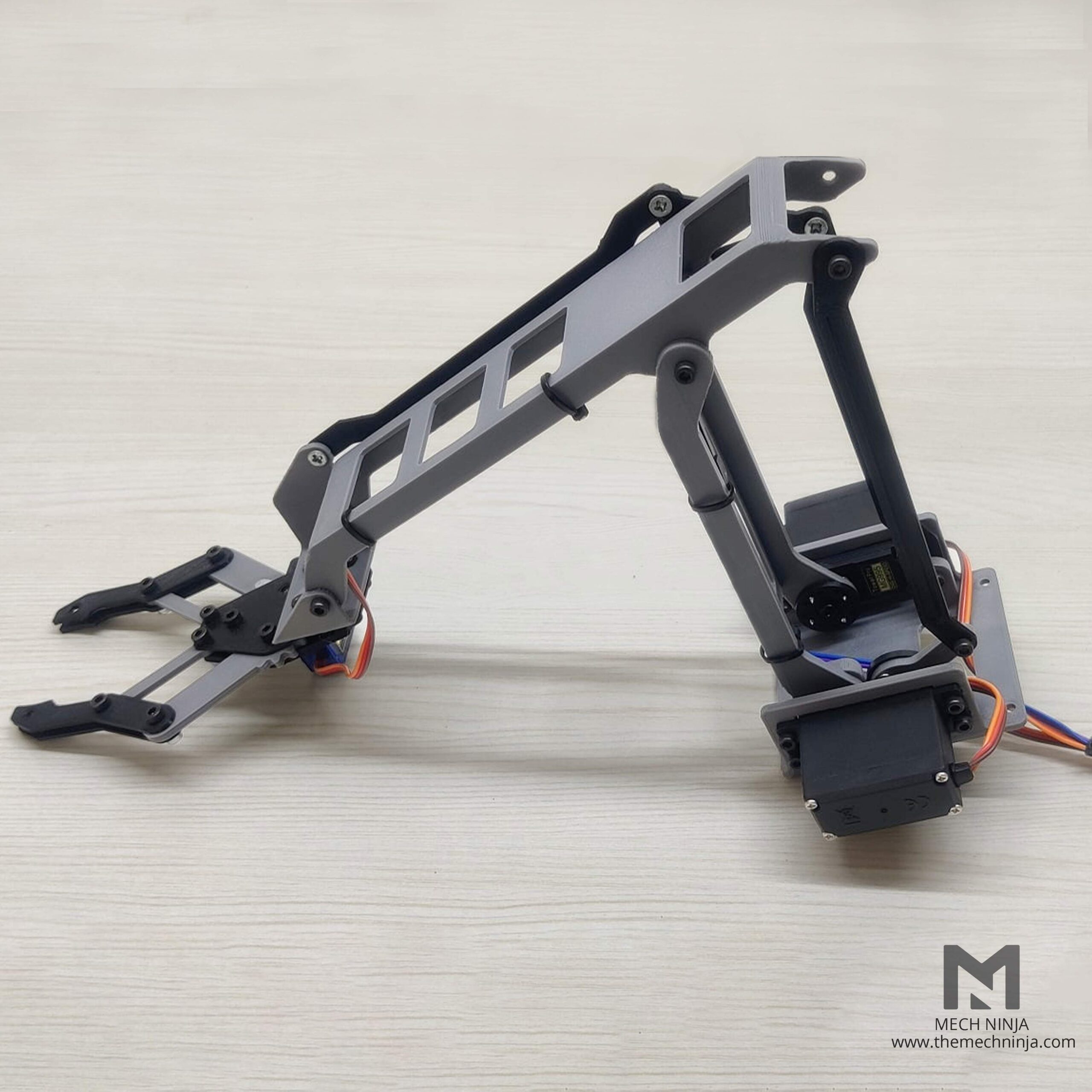

Finished Claw Arm on an Arduino Car

Wireless Arduino Car (With Car Code, Mobile App, Mecanum Wheel FREE)

Arduino Wifi Car (Code + App + Mecanum Wheel – Free)
