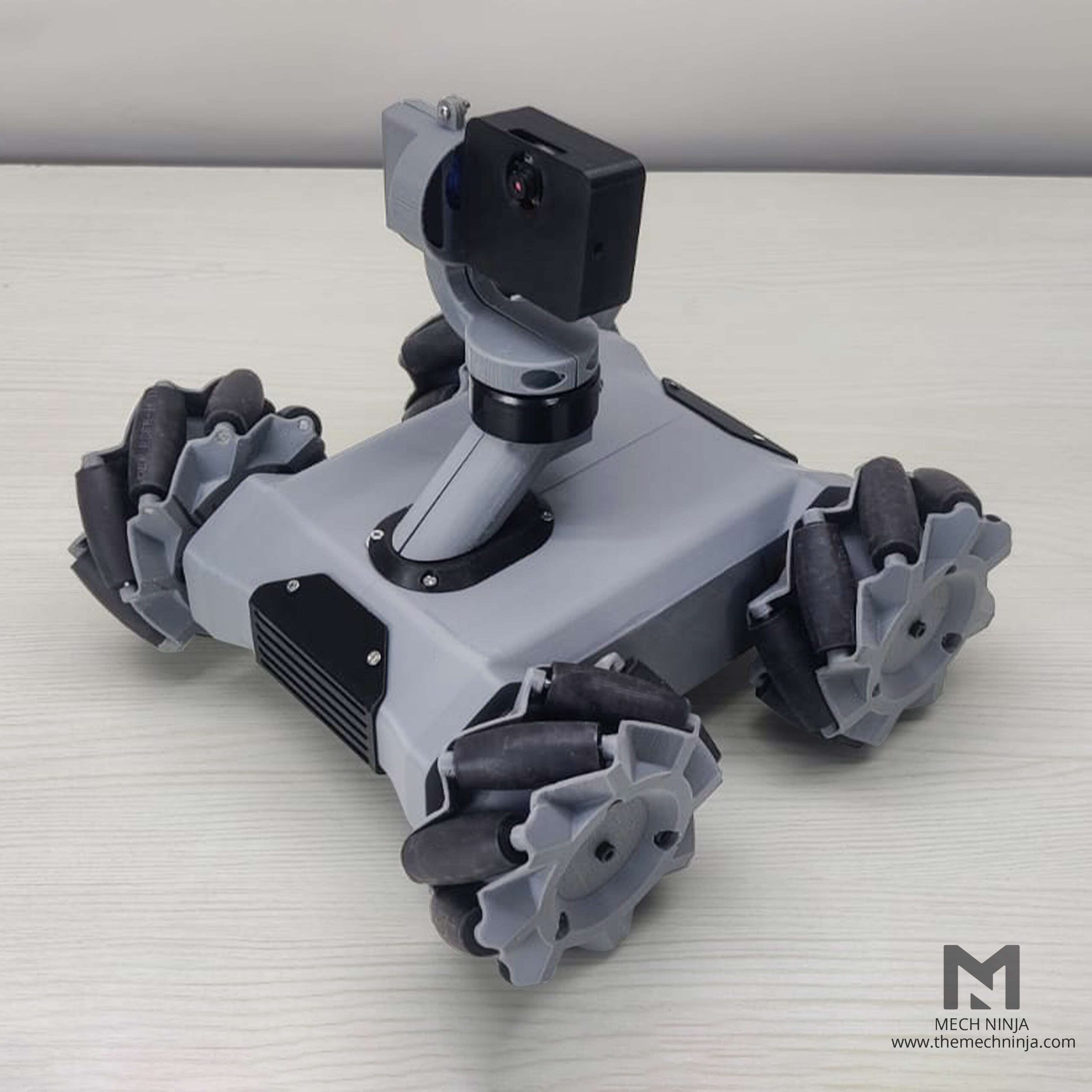

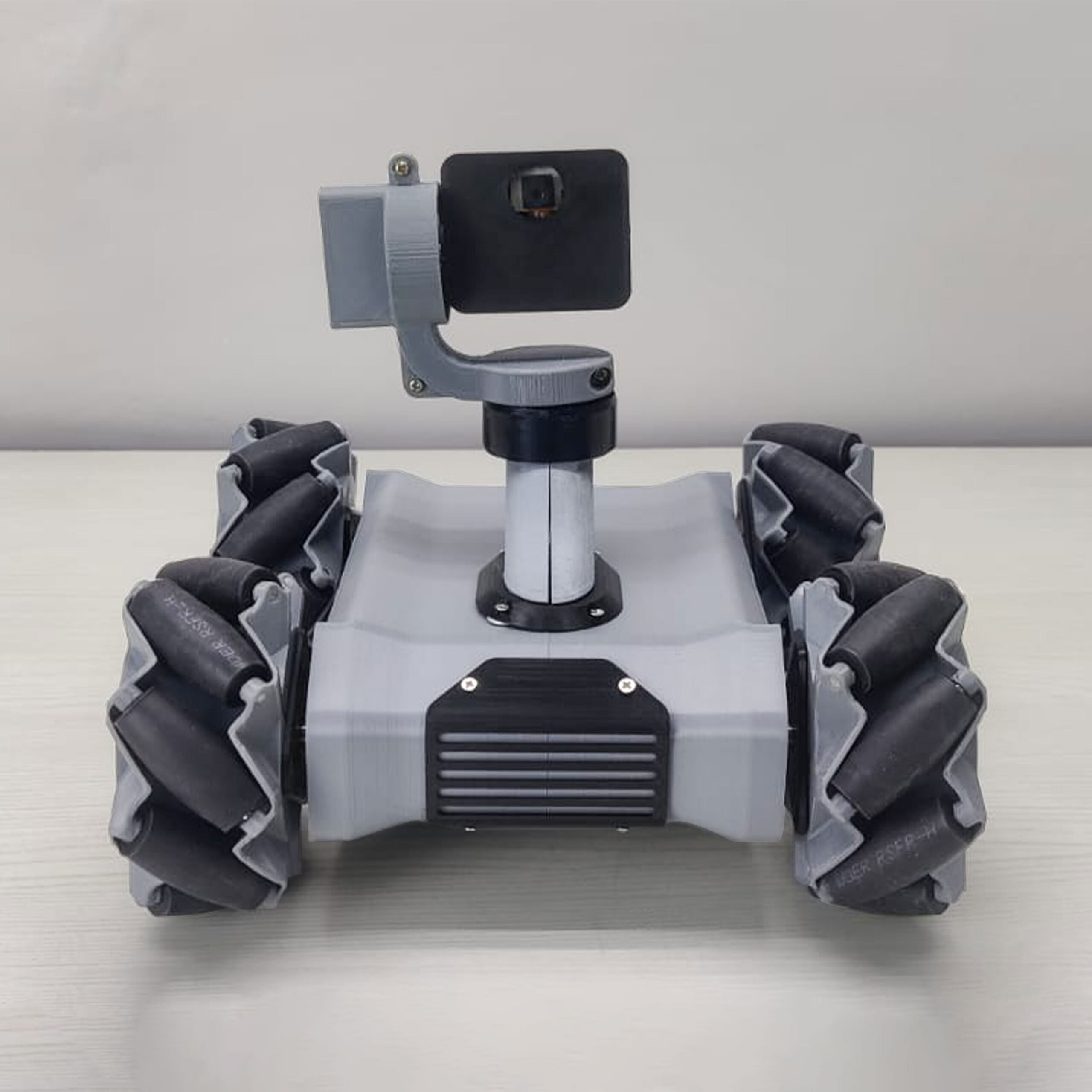

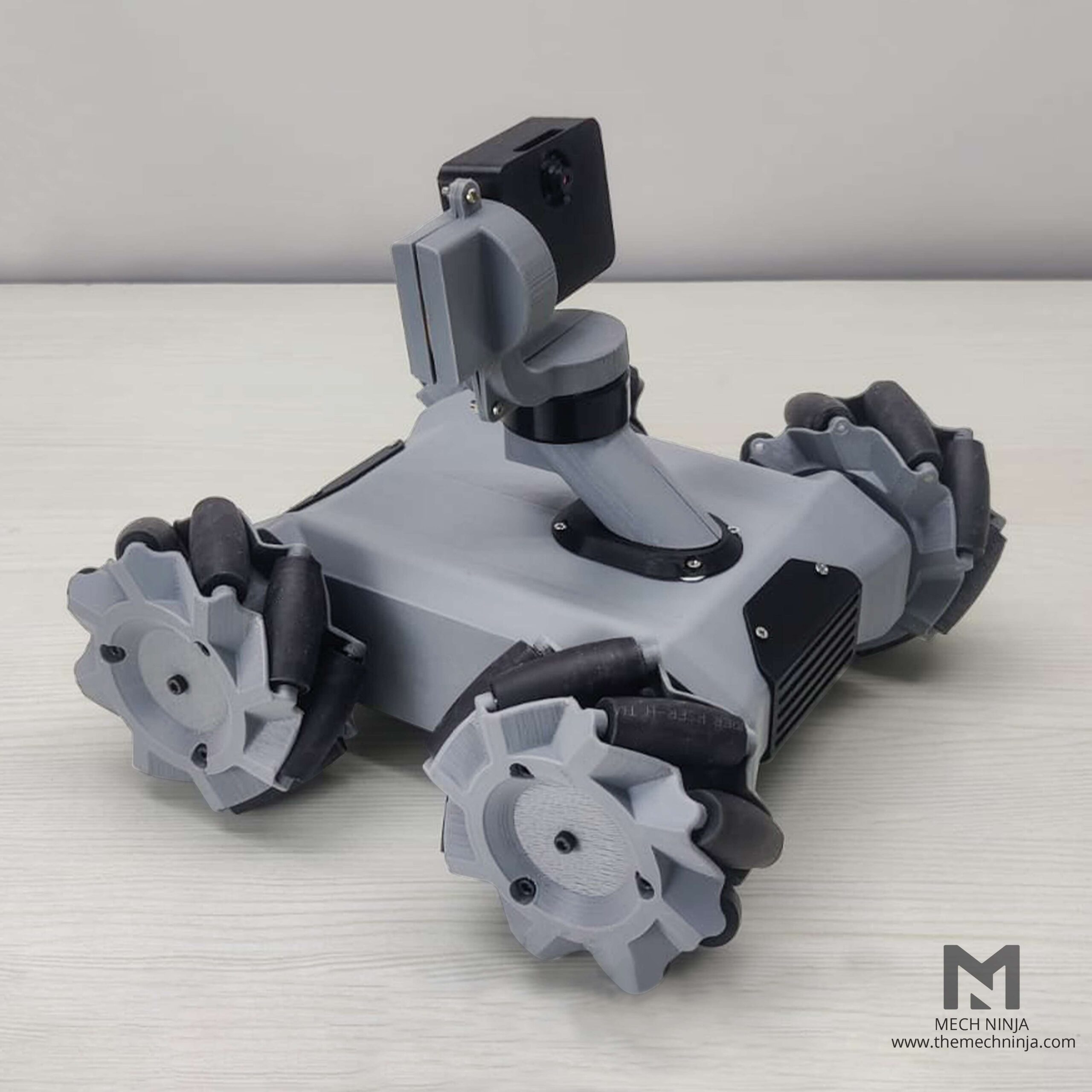

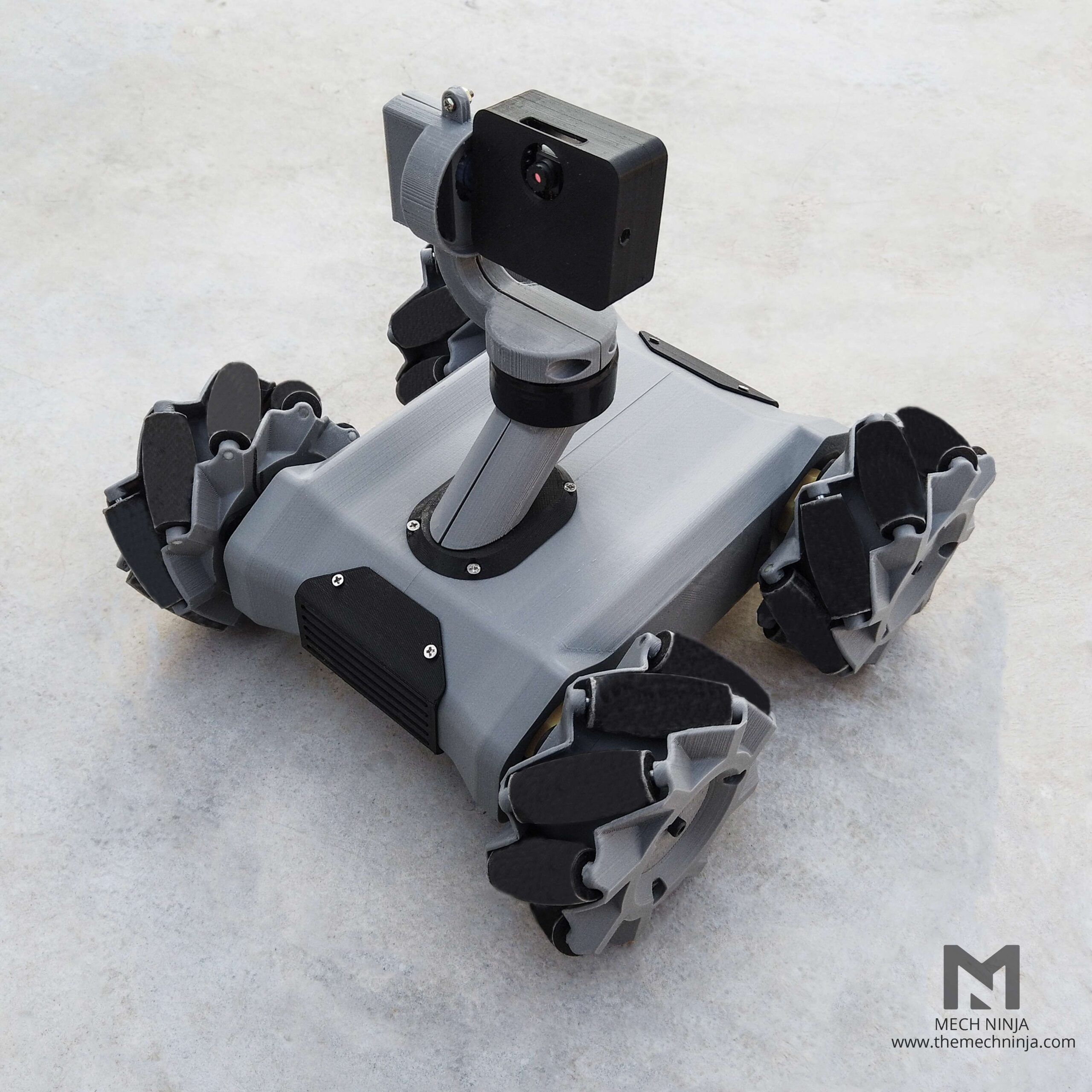

3D Printable Mecanum Wheel Car With Camera on ESP32 .STL Files

This file contains all files required to print your own Mecanum Wheel Car with Camera on ESP32 at home.

Total Printing Volume of all 14 Files: 190,290 mm³

This file contains 14 .STL files i.e.

Camera Gimbal

1. Camera Case
2. Camera Flap
3. Fix Arm
4. Gimbal Holder
5. Tilt Arm

Robot Body

1. Grill
2. Left Body
3. Right Body
4. Bottom Hatch
5. Button Mount

Mecanum Wheel

1. Back
2. Front
3. Roller
4. Connector

The Mecanum Wheel Car with Camera on ESP32 is distributed into the above-mentioned parts so that you can easily print any part at your home with your own DIY 3D printer of minimal size i.e. 220(mm)x220(mm)x250(mm).

All the files given are complete and have been tested.

Camera Gimbal File Details-

1.) Camera Case

• Size (mm): 20 x 50 x 42
• Volume: 7,490 mm³

2.) Camera Flap

• Size (mm): 2 x 47 x 37
• Volume: 2,582 mm³

3.) Fix Arm

• Size (mm): 42 x 19 x 79
• Volume: 4,199 mm³

4.) Gimbal Holder

• Size (mm): 60 x 40 x 5
• Volume: 3,124 mm³

5.) Tilt Arm

• Size (mm): 67 x 77 x 19
• Volume: 5,585 mm³

Robot Car Body File Details-

1.) Bottom Hatch

• Size (mm): 168 x 68 x 3
• Volume: 10,517 mm³

2.) Camera Flap

• Size (mm): 15 x 36 x 2
• Volume: 614 mm³

3.) Grill

• Size (mm): 19 x 60 x 48
• Volume: 3,664 mm³

4.) Left Body

• Size (mm): 185 x 60 x 63
• Volume: 51,594 mm³

5.) Right Body

• Size (mm): 185 x 60 x 63
• Volume: 51,970 mm³

Mecanum Wheel File Details-

1.) Back

• Volume: 14,707 mm³
• Dimensions (LBH): 18 x 82 x 82 mm

2.) Front

• Volume: 22,385 mm³
• Dimensions (LBH): 28 x 82 x 82 mm

3.) Roller

• • Volume: 5,989 mm³
  • Dimensions (LBH): 35 x 16 x 35 mm

4.) Connector

• • Volume: 5,870 mm³
  • Dimensions (LBH): 34 x 50 x 45 mm

Watch our Mecanum Wheel Car with Camera on ESP32 video on youtube.

In case of any doubt, please use the Contact Us page.

Thank You.
