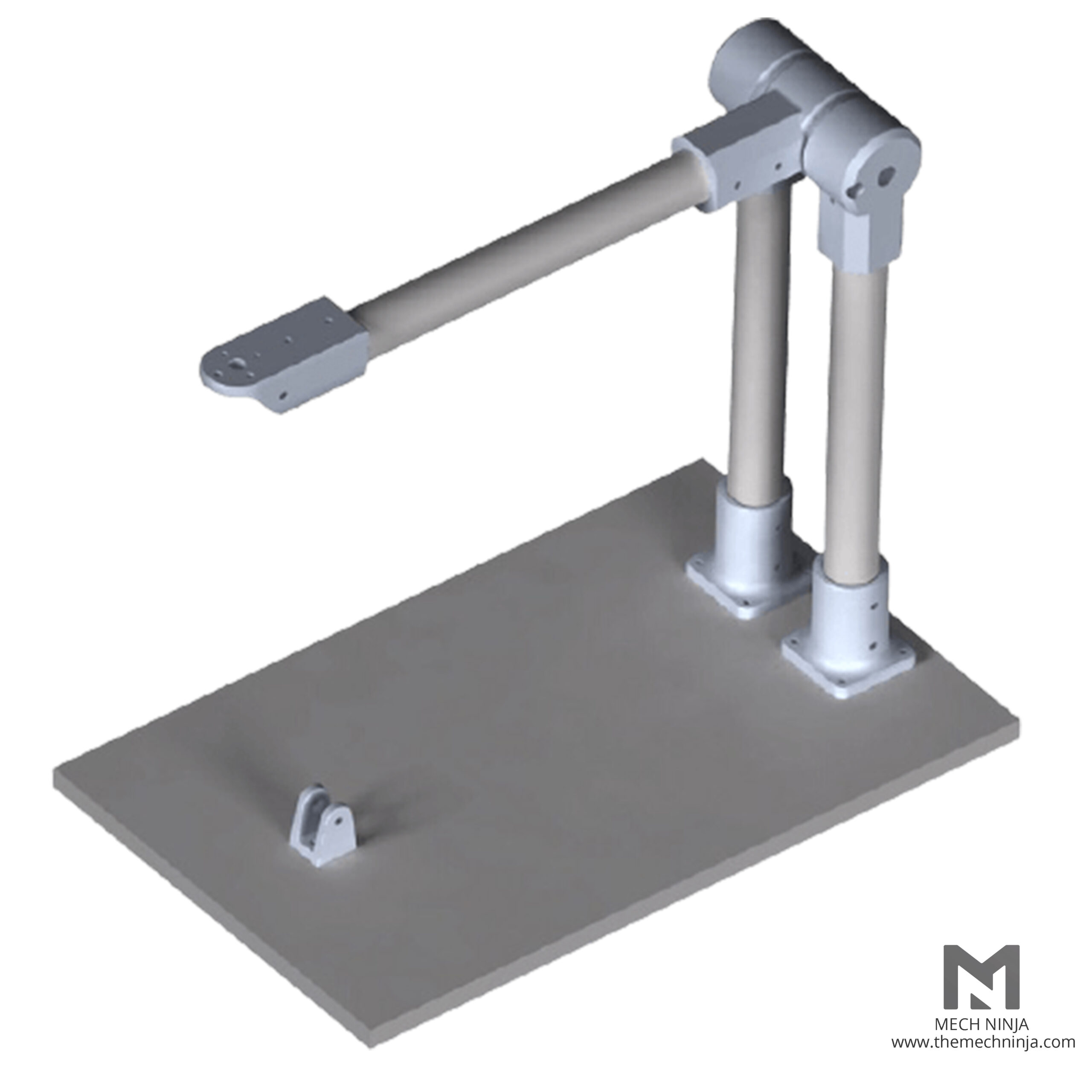

3D Printable Motor Thrust Test Rig
Overview

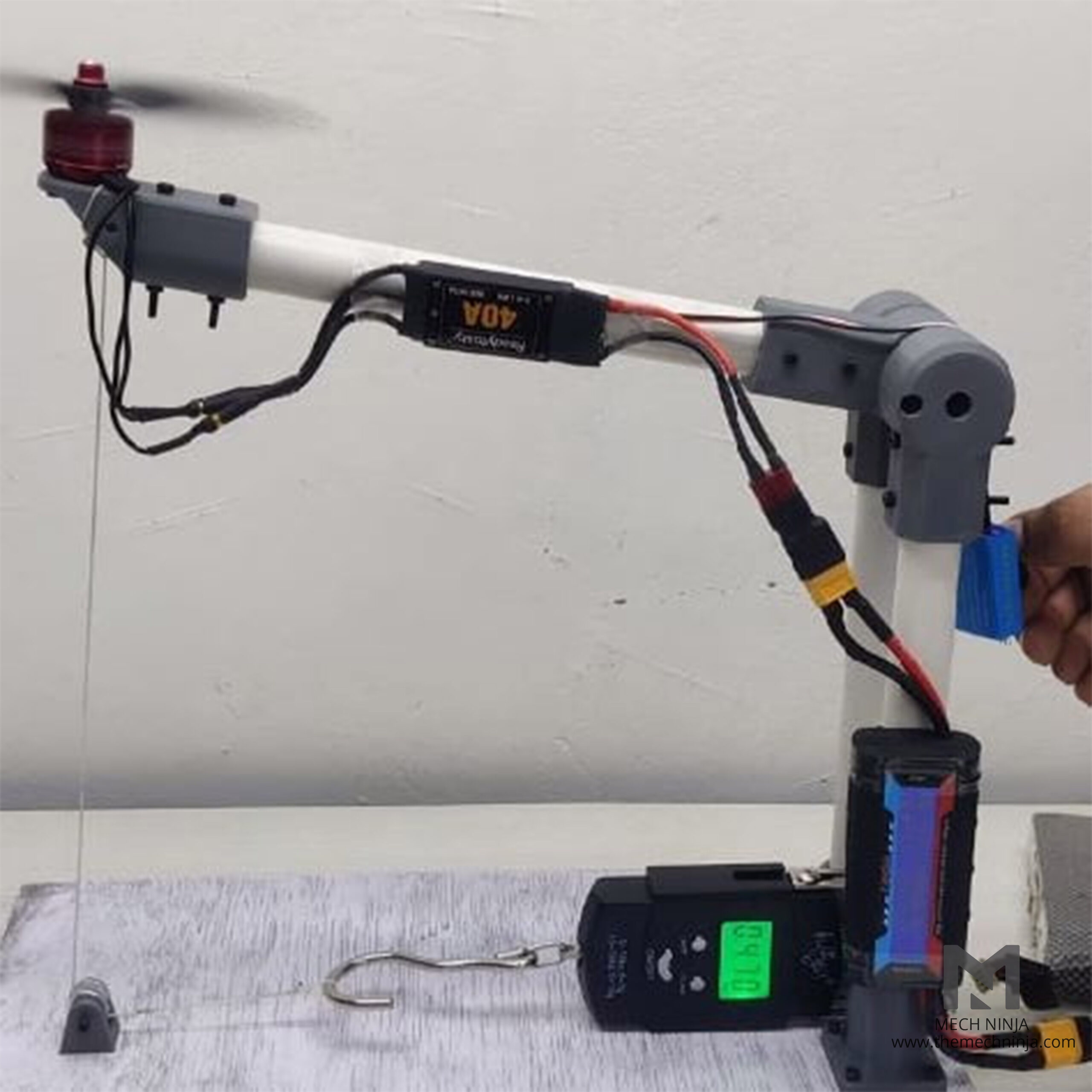

This Mechanical / Motor Thrust Test Rig STL is a precision 3D printable setup for measuring drone motor and EDF thrust. Ideal for makers, RC enthusiasts, and researchers.
Features
3D printable, lightweight design
Compatible with drone and EDF motors
Accurate thrust measurement setup
Modular structure for easy modification
Includes
STL Files (ZIP)
Assembly guide
Recommended motor + prop setup
Build, test, and optimize your drone performance with The Mech Ninja Thrust Test Rig.
This “Motor Thrust Test Rig” is a downloadable product that contains a ZIP file containing all the STL files for 3D printing your test rig at home.
The ZIP folder contains 6 STL files that all are tested and printed. Details about all of them are given further in the description below.

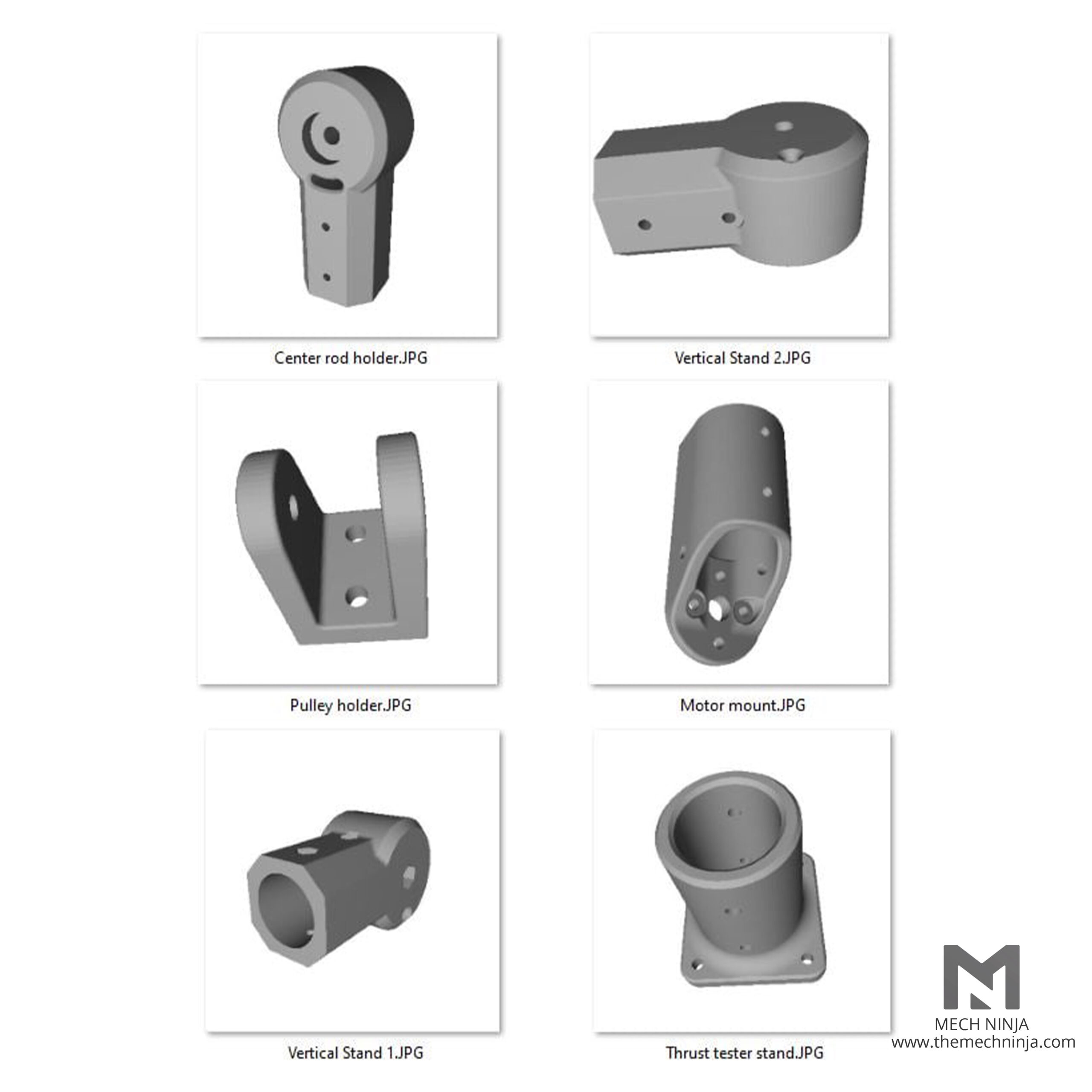

The name of all the 6 STL files included in the ZIP folder is-
- Center Rod Holder
- Motor Mount
- Pulley Holder
- Thrust Tester Stand
- Vertical Stand 1
- Vertical Stand 2
The total Print volume of all 6 STL files is 179,517 mm³, image and further details of each Motor Test Rig STL file are given below.
All the above files are easily printable on a 220 x 220 x 220 (mm) homemade 3D printer. If you don’t have one then you can watch our step-wise detailed guide for the same, whose link is given below.
Homemade 3D Printer | Simple DIY Under $150
Print Volume and Dimensions of each Motor Test Rig STL File

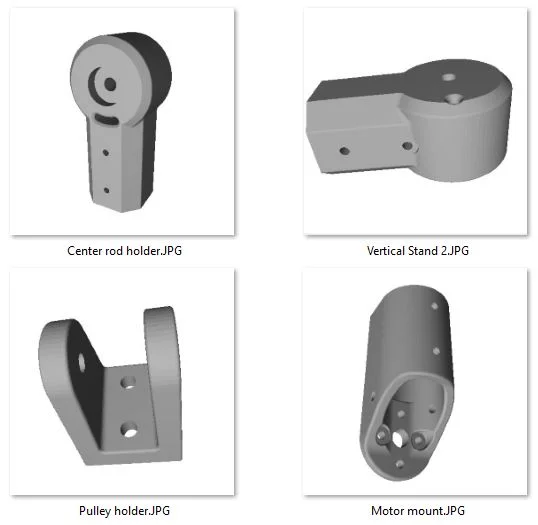

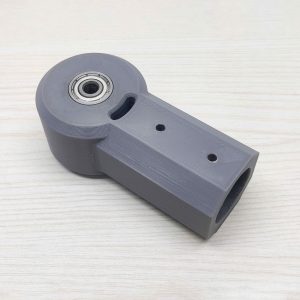

1. Center Rod Holder
- Print Volume – 51,118 mm³
- Dimensions (mm) – 30 x 80 x 40

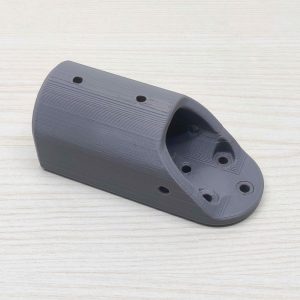

2. Motor Mount
- Print Volume – 22,174 mm³
- Dimensions (mm) – 30 x 70 x 30

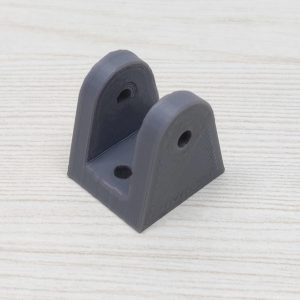

3. Pulley Holder
- Print Volume – 3,584 mm³
- Dimensions (mm) – 18 x 20 x 25
4. Thrust Tester Stand
- Print Volume – 21,074 mm³
- Dimensions (mm) – 40 x 40 x 25

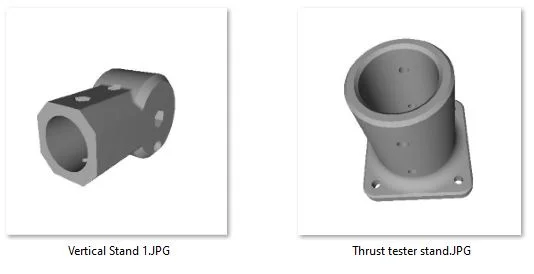

5. Vertical Stand 1
- Print Volume – 40,817 mm³
- Dimensions (mm) – 30 x 40 x 65

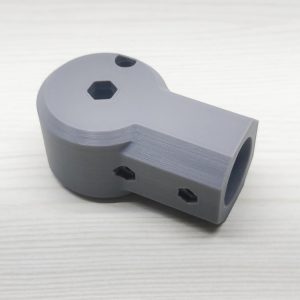

6. Vertical Stand 2
- Print Volume – 40,750 mm³
- Dimensions (mm) – 30 x 40 x 65
You can also read our blog on
the motor thrust test rig, performed on Racerstar 2207 Motor.
(Coming Soon)
Or, you can watch our Youtube video.
Motor ×4 | 5010 750 KV Brushless motor link |
Propeller ×2 pair | 1145 link 1147 link 1150 link 1238 link 1245 link |
ESC ×4 | Hobbywing 60A link Hobbywing 40A link Readytosky 40A link |
Flight Controller | Radiolink Pixhawk link CUAV 7 Nano link |
Transmitter & Receiver | 10 Ch FS-i6S link |
Power Distribution Board | 100A PDB link Matek PDB link |
6S Battery | 5000 mAh link |
Battery Charger | Sky RC B6 Neo link Imax B6 Balance link Imax B3 Pro (2S 3S) link |
Parts Included in the STL File
