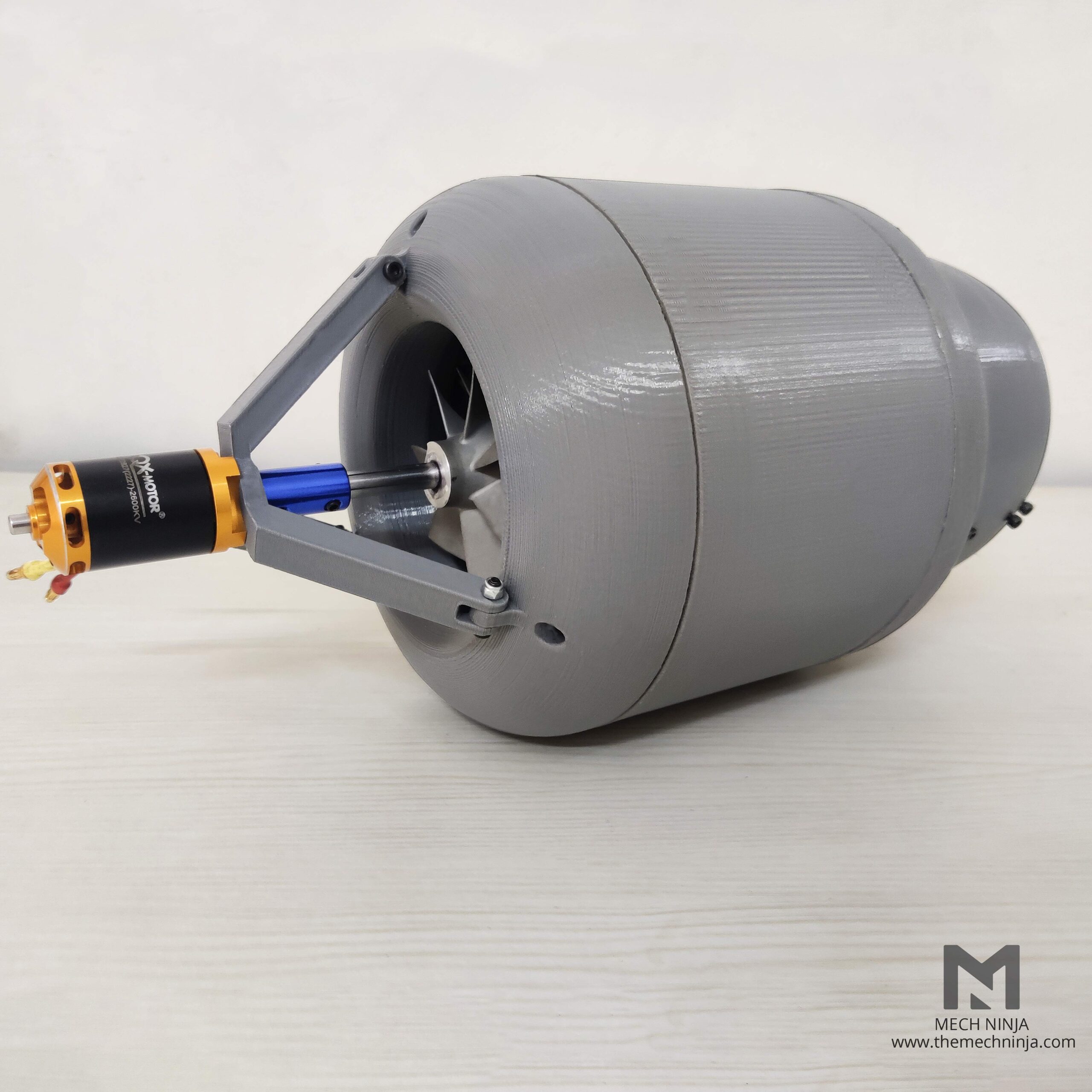

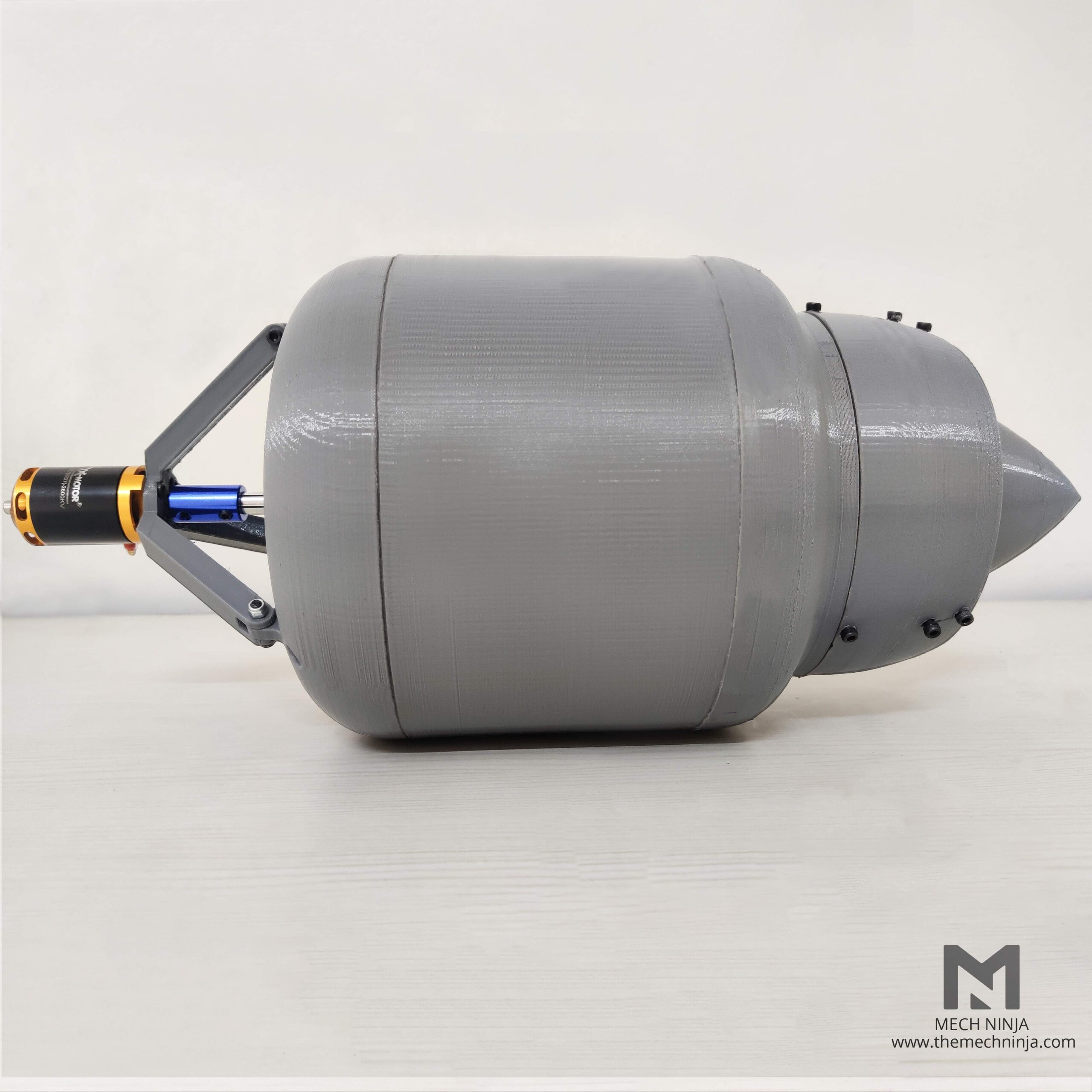

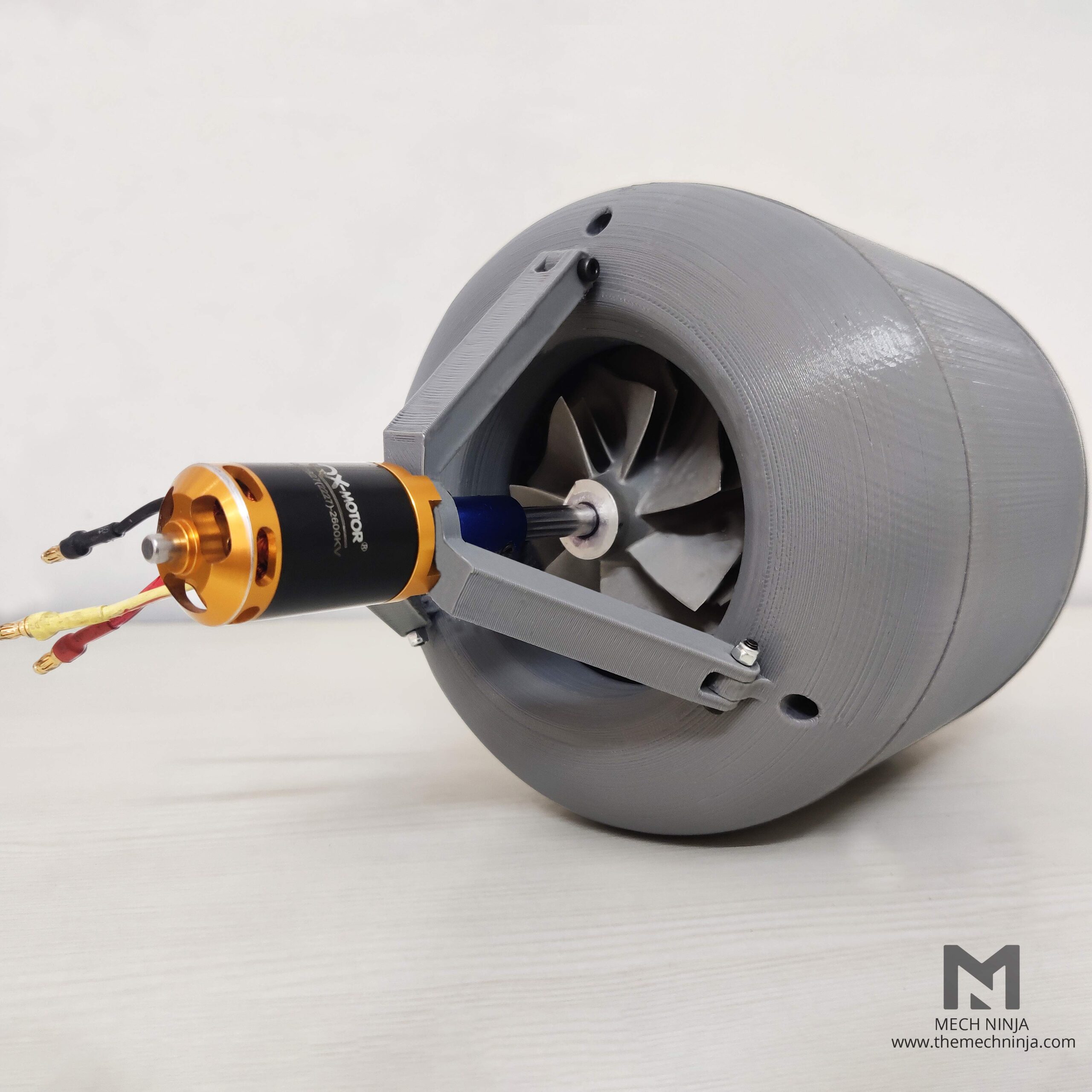

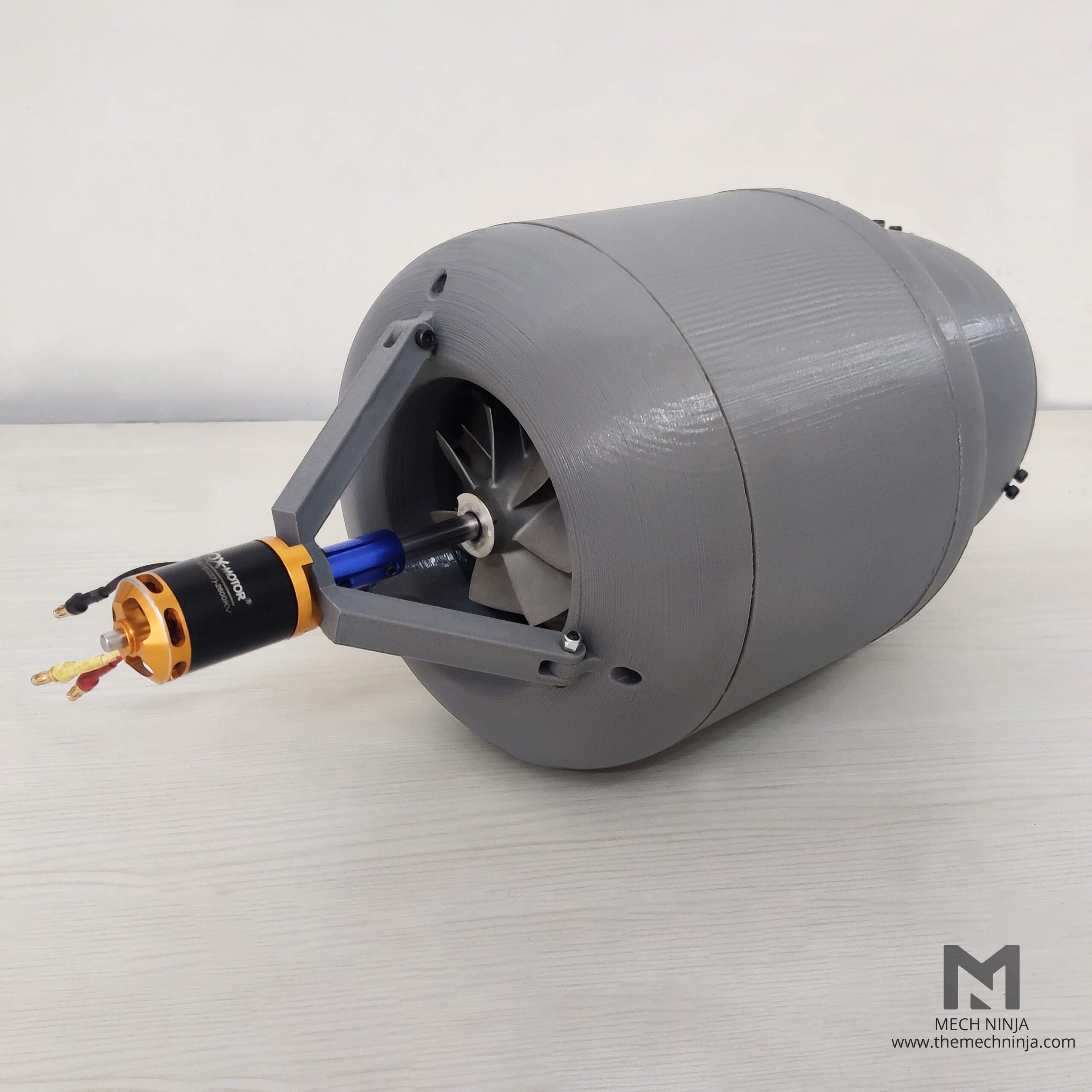

Mini Jet Turbine

(1 customer review)

Original price was: $ 15.00.Current price is: $ 8.00.

  • All parts(.STL files) in one .ZIP file.
  • Easily printable on 220X220X250(mm) 3D printer.
  • Parts are easily assemblable i.e. with screws only.
  • Total printing Volume: 1,059,763.1 mm³.

License – TheMechNinja Paid Standard Digital File License

Categories: , , Tags: , ,
Guaranteed Safe Checkout
  • UPI ICON

3D Printable Mini Jet Turbine .STL Files

To print your own Mini Jet Turbine at home, all files are given in the ZIP file.

There are a total of 12 STL files for the Mini Jet Turbine. These 12 files contain single parts which are divided in a way so you can print them easily in a 220x220x250 3D printer

Total Printing Volume of all 12 Files: 1,059,763.1 mm³

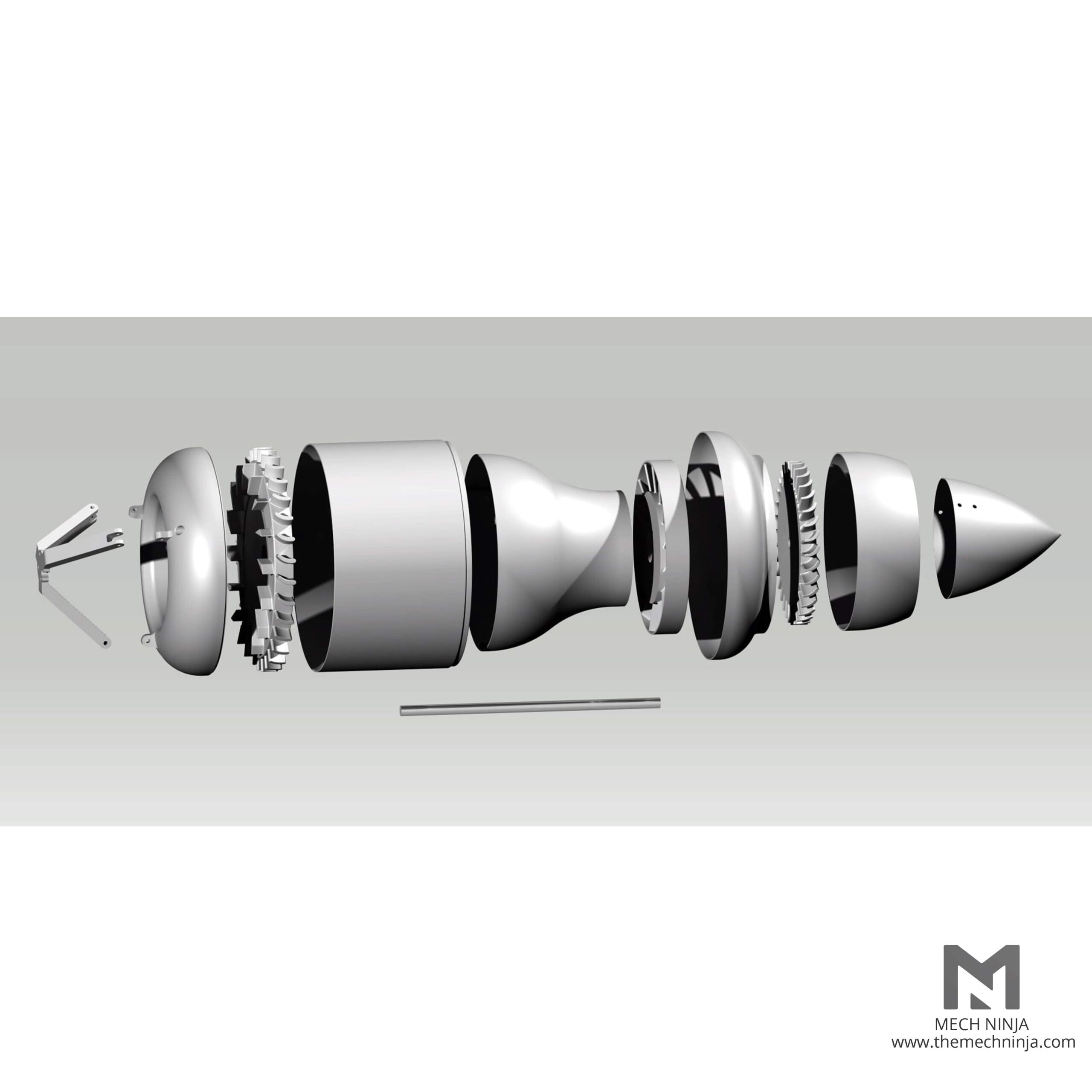

The name of all the 12 STL files are:-

  1. Back
  2. Center Rod
  3. Center
  4. Compressor
  5. Cone
  6. Coupler
  7. Curve
  8. Front
  9. Motor Mount
  10. Shell
  11. Stator
  12. Turbine

All the files given are complete and have been tested.

For assembly and further instruction, you can visit the link given below

Mini Turbojet Engine: The Best 3D Printable Electric

OR

Watch our DIY Jet Turbine Engine video on youtube.

Details of each file are given below separately:-

Back

    • Width: 135.39 mm
    • Depth: 135.39 mm
    • Height: 50.00 mm
    • Total Printing Volume: 24923.37 mm³

Center Rod

      • Width: 40.00 mm
      • Depth: 110.00 mm
      • Height: 40.00 mm
      • Total Printing Volume: 14086.04 mm³

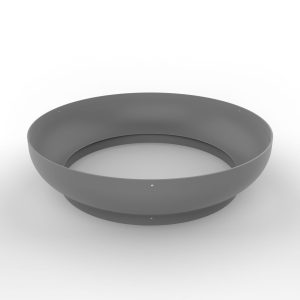

Center

    • Width: 173.18 mm
    • Depth: 173.18 mm
    • Height: 41.65 mm
    • Total Printing Volume: 31117.61 mm³

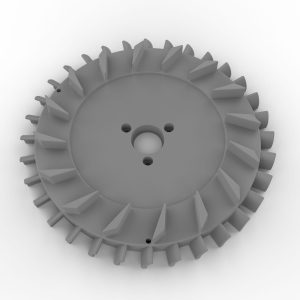

Compressor

    • Width: 170.00 mm
    • Depth: 24.00 mm
    • Height: 170.00 mm
    • Total Printing Volume: 254651.09 mm³

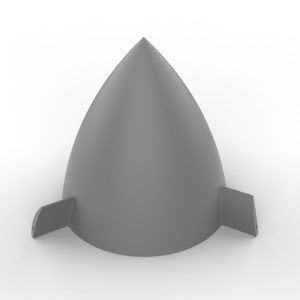

Cone

    • Width: 170.00 mm
    • Depth: 24.00 mm
    • Height: 170.00 mm
    • Total Printing Volume: 15047.00 mm³

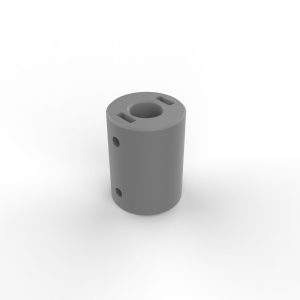

Coupler

    • Width: 16.00 mm
    • Depth: 16.00 mm
    • Height: 27.00 mm
    • Total Printing Volume: 4136.00 mm³

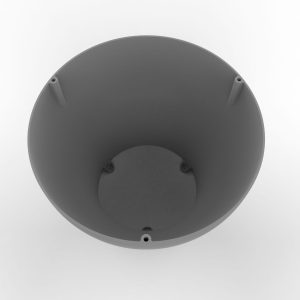

Curve

    • Width: 149.00 mm
    • Depth: 110.00 mm
    • Height: 149.00 mm
    • Total Printing Volume: 51958.00 mm³

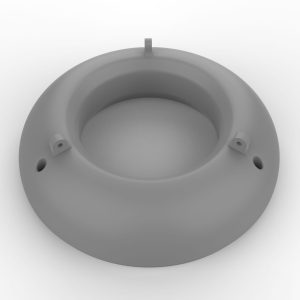

Front

    • Width: 173.00 mm
    • Depth: 50.00 mm
    • Height: 173.00 mm
    • Total Printing Volume: 531073.00 mm³

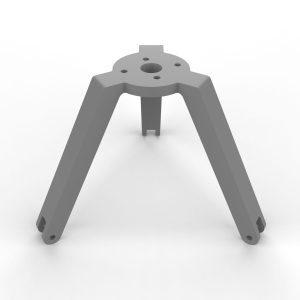

Motor Mount

    • Width: 117.00 mm
    • Depth: 54.00 mm
    • Height: 101.00 mm
    • Total Printing Volume: 22878.00 mm³

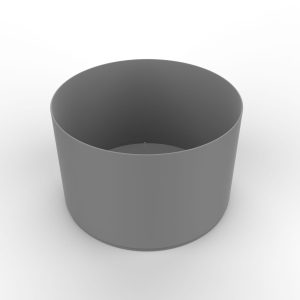

Shell

    • Width: 173.00 mm
    • Depth: 107.00 mm
    • Height: 173.00 mm
    • Total Printing Volume: 70161.00 mm³

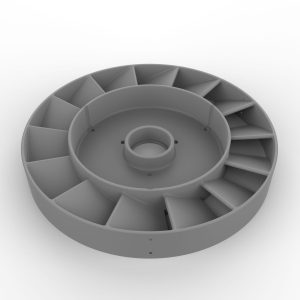

Stator

    • Width: 132.00 mm
    • Depth: 132.00 mm
    • Height: 18.00 mm
    • Total Printing Volume: 47143.00 mm³

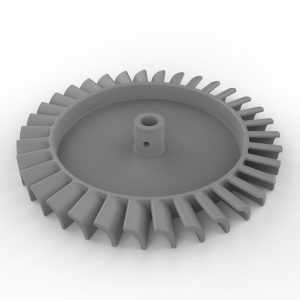

Turbine

    • Width: 17.00 mm
    • Depth: 124.00 mm
    • Height: 124.00 mm
    • Total Printing Volume: 39732.00 mm³

In case of any problem feel free to contact us through the contact page.

Thank You.

Type of File

With Essentials, Without Essentials

1 review for Mini Jet Turbine

    Gaurav
    June 23, 2021
    The 3D printing files are perfect and take a lot of time to print. The model has all the parts except the impeller which we have to buy seperately. The designer should design the impeller too and upload the file. Overall perfect.
