70 mm Variable Nozzle EDF V1.0

$ 15.00

  • 12 Blade Propeller is included.
  • All parts(.STL files) in one .ZIP file.
  • Easily printable on 220X220X250(mm) 3D printer.
  • Total Printing Volume of all 9 Files: 115,345 mm³

License – TheMechNinja Paid Standard Digital File License

Categories: , , Tags: , ,
Guaranteed Safe Checkout

3D Printable Variable Nozzle Electric Ducted Fan .STL Files

This file contains all files required to print your Variable Nozzle Electric Ducted Fan at home.

Total Printing Volume of all 9 Files: 115,345 mm³

This file contains 9 .STL files i.e.

  1. Outer Casing
  2. Servo Holder
  3. Slider
  4. 70mm Casing
  5. 70mm EDF Propeller
  6. EDF Holder
  7. Link
  8. New Nozzle
  9. Nozzle Holder

The Variable Nozzle EDF is distributed into the parts mentioned above so that you can easily print any part at your home with your own DIY 3D printer of minimal size i.e. 220(mm)x220(mm)x250(mm).

All the files given are complete and have been tested.

  • Outer Casing

    • Volume: 43,196 mm³
    • Dimensions (LBH): 87 x 87 x 65 mm
  • Servo Holder

    • Volume: 924 mm³
    • Dimensions (LBH): 18 x 18 x 31 mm
  • Slider

    • Volume: 4,809 mm³
    • Dimensions (LBH): 101 x 101 x 8.5 mm
  • 70mm Casing

    • Volume: 43,196 mm³
    • Dimensions (LBH): 87 x 87 x 65 mm
  • 70mm EDF Propeller

    • Volume: 7,967 mm³
    • Dimensions (LBH): 67 x 67 x 18 mm
  • EDF Holder

    • Volume: 10,840 mm³
    • Dimensions (LBH): 74 x 74 x 32 mm
  • Link

    • Volume: 293 mm³
    • Dimensions (LBH): 2 x 14 x 31 mm
  • New Nozzle

    • Volume: 1,369 mm³
    • Dimensions (LBH): 26 x 11 x 30 mm
  • Nozzle Holder

    • Volume: 2,751 mm³
    • Dimensions (LBH): 82 x 82 x 12 mm

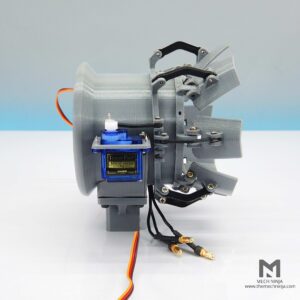

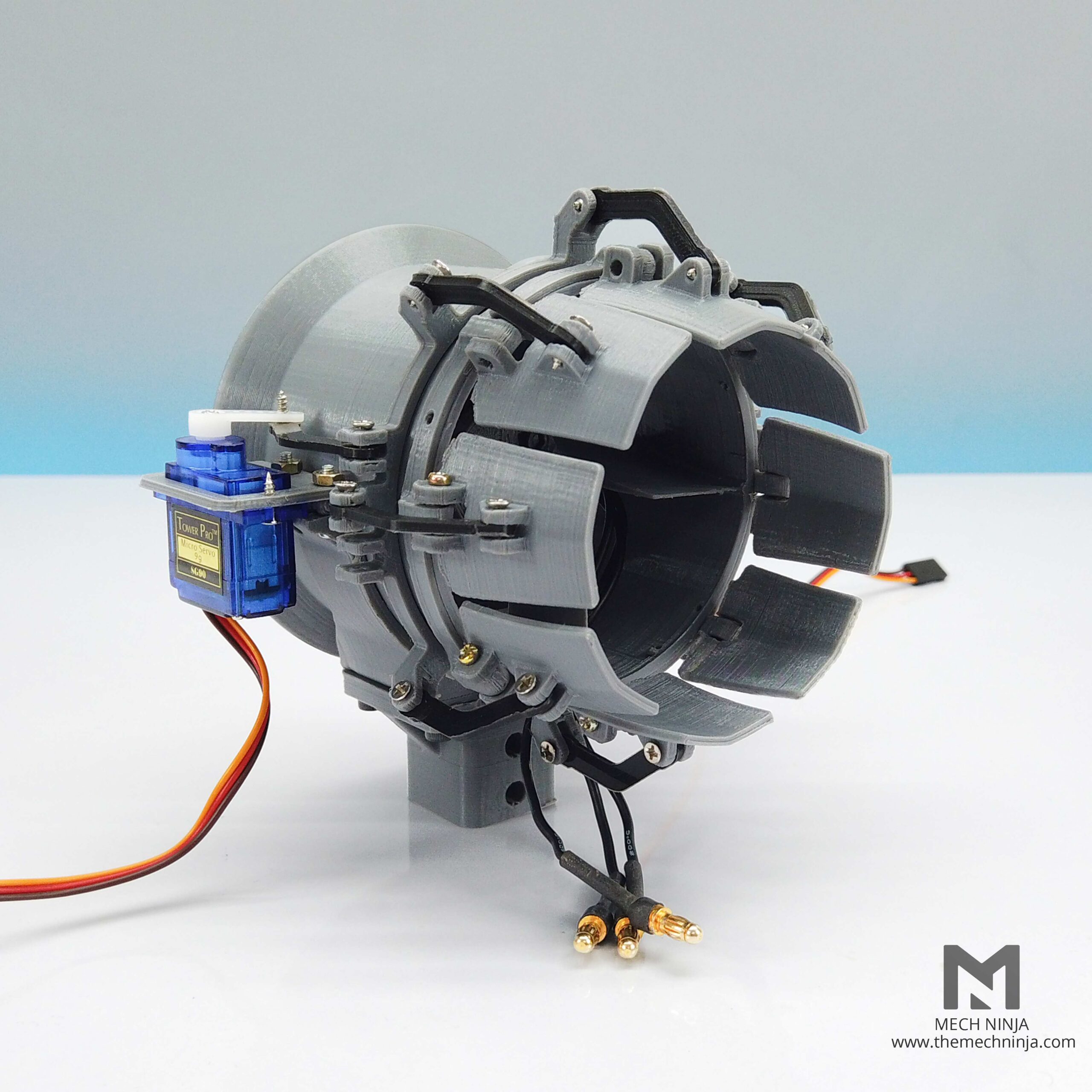

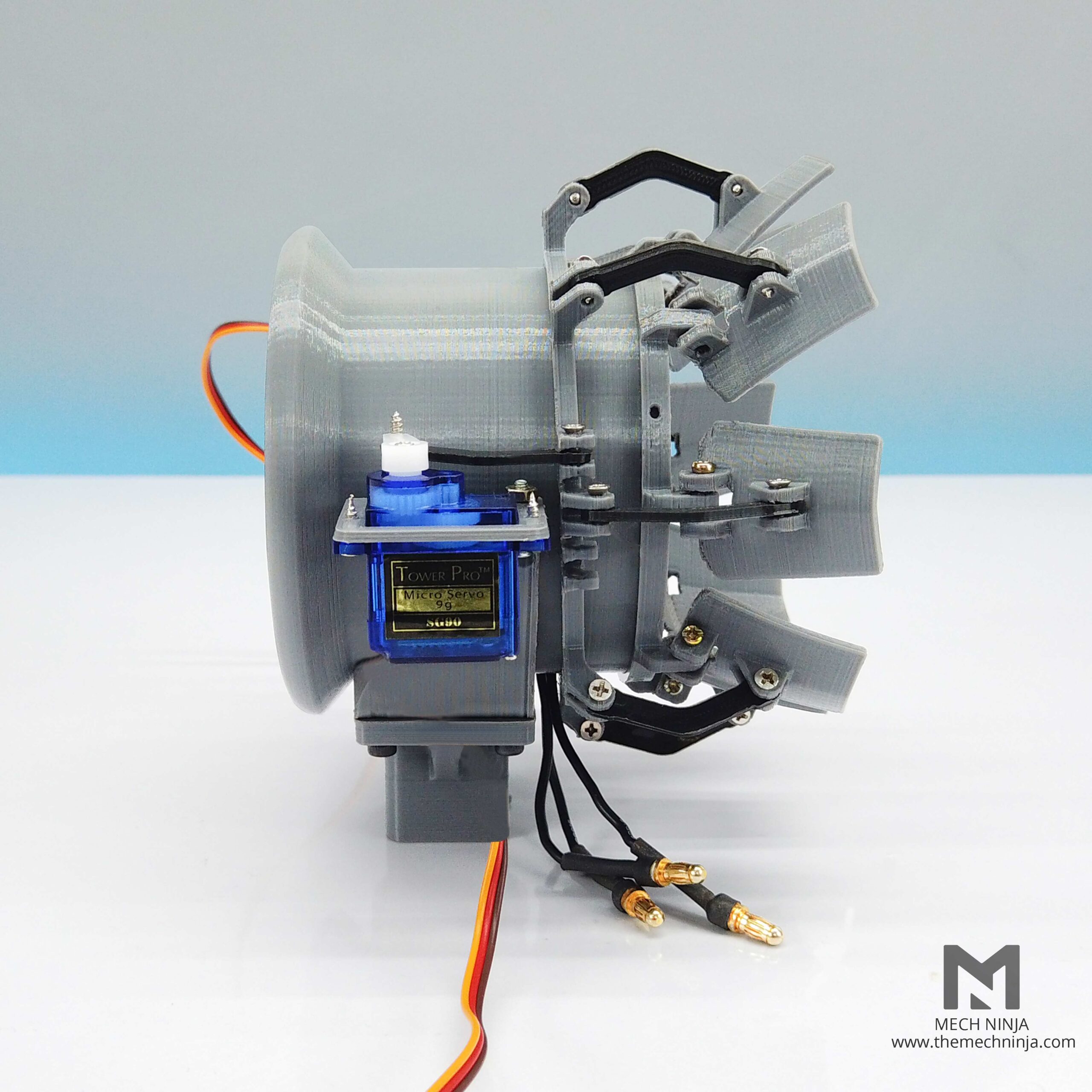

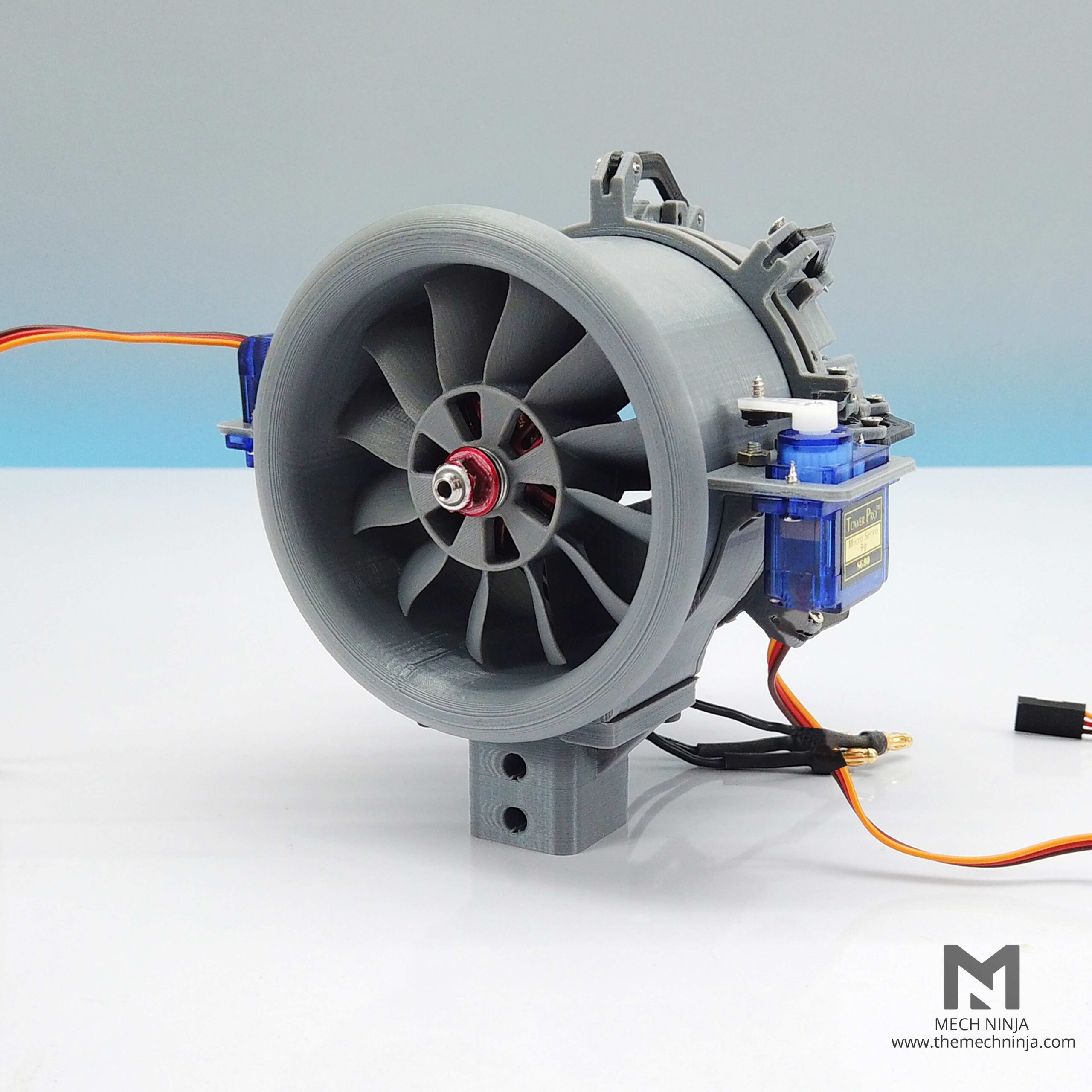

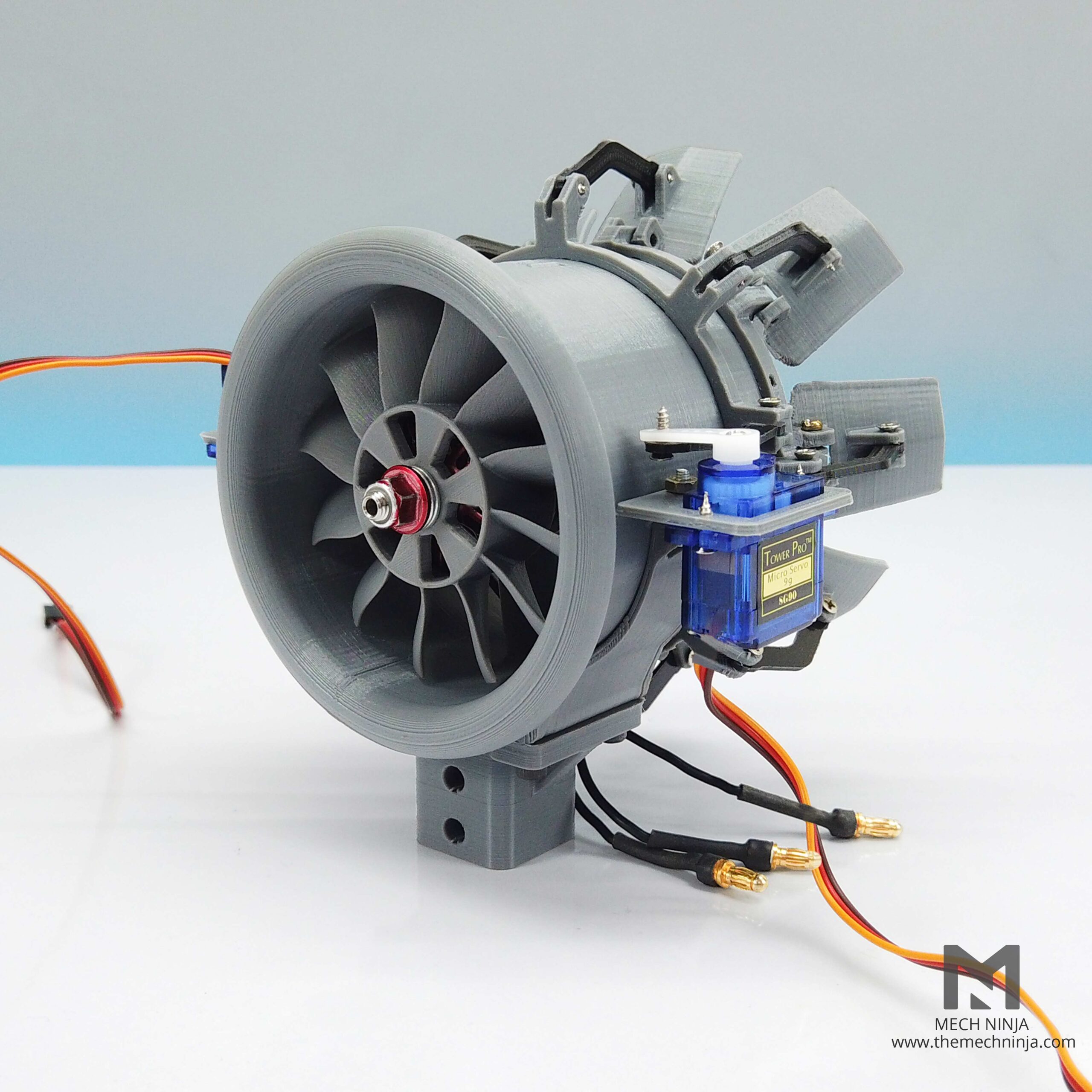

Variable Nozzle EDF Parts included in the File, Images-

variable EDF Parts 1 variable EDF Parts 2



Watch our DIY Variable Nozzle Electric Ducted Fan video on YouTube.

In case of any doubt, please use the Contact Us page.

Thank You.
