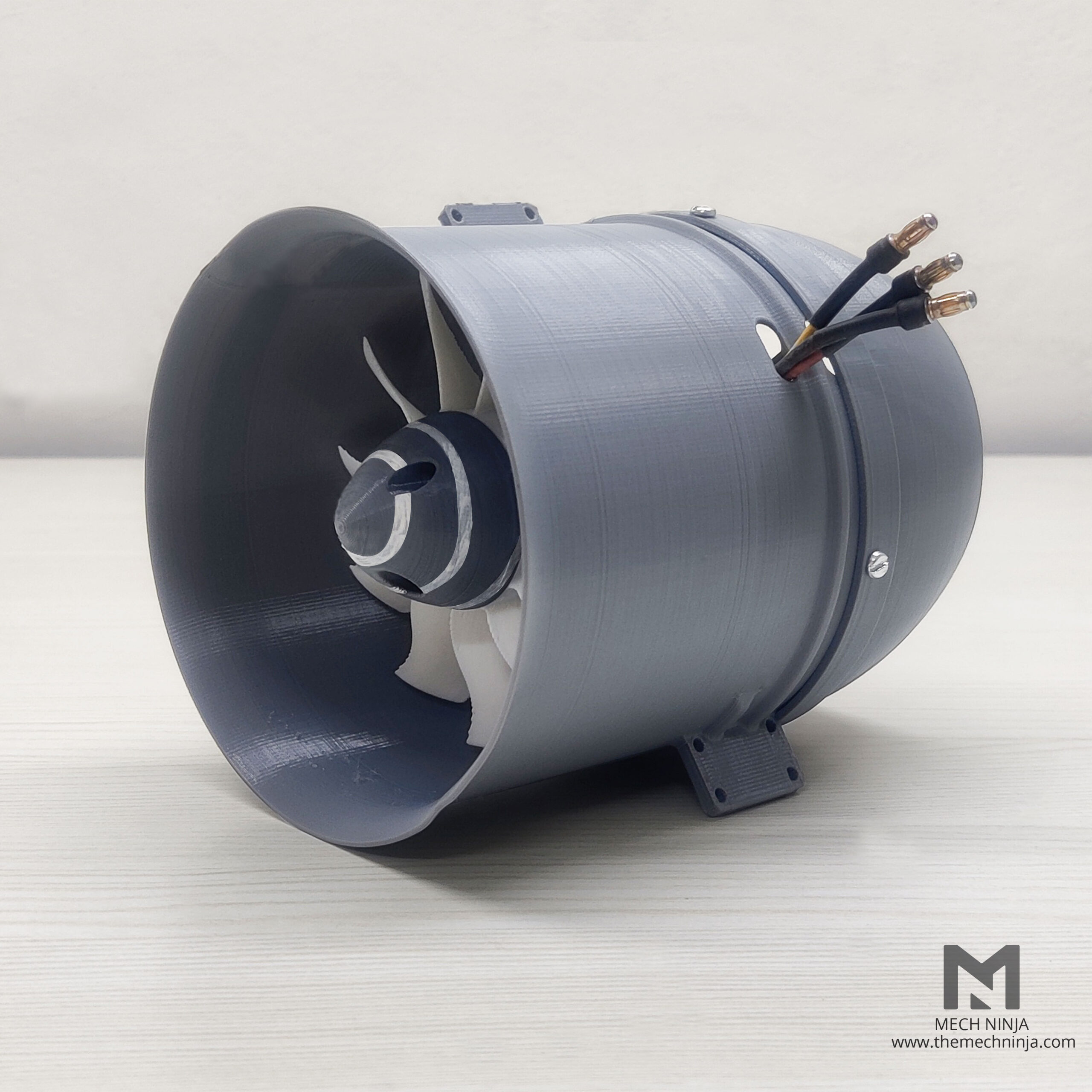

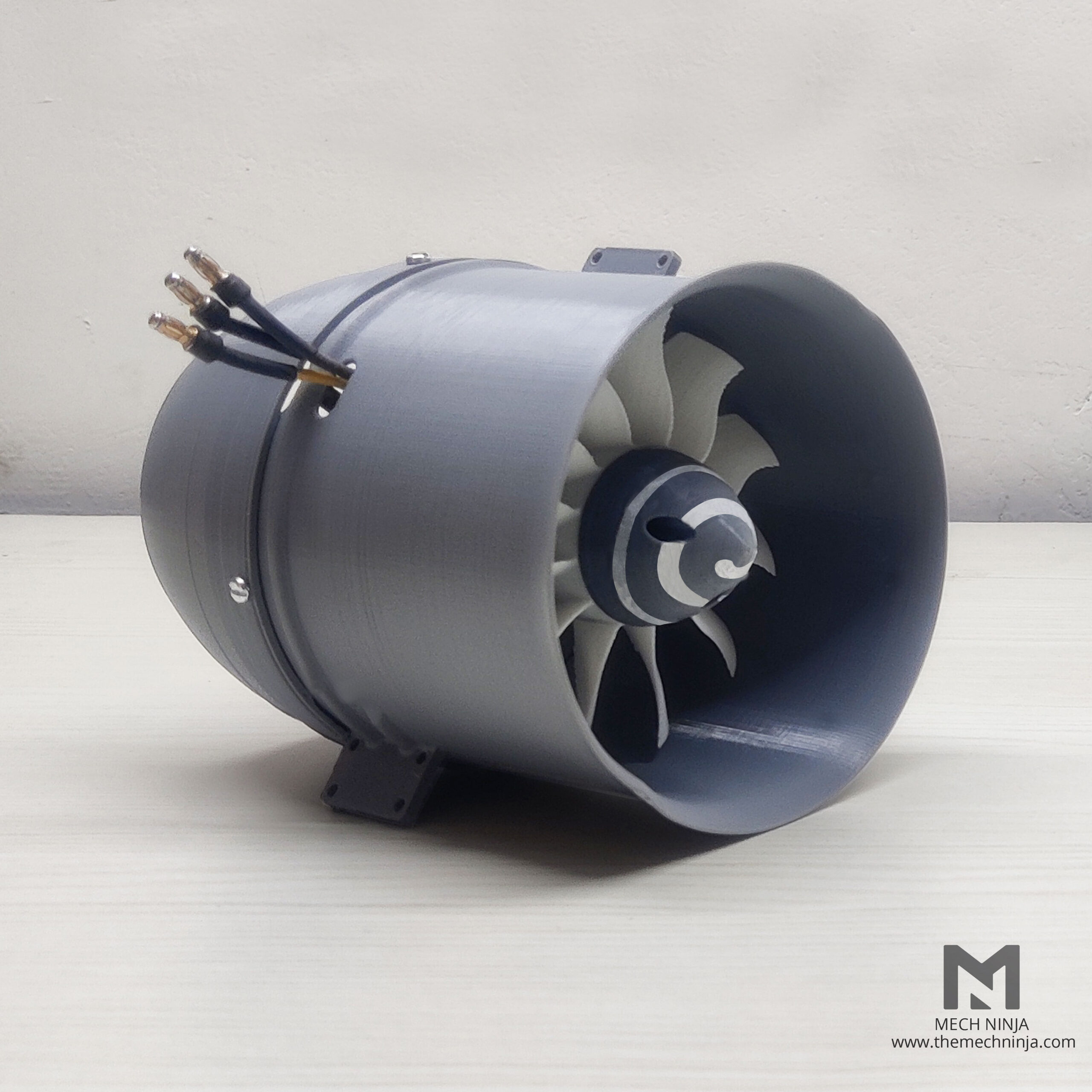

3D Printable 100mm Ducted Fan Single Propeller STL Files

This file contains all the files required to print your Ducted Fan at home.

Total Printing Volume of all 6 Files: 126,734 mm³

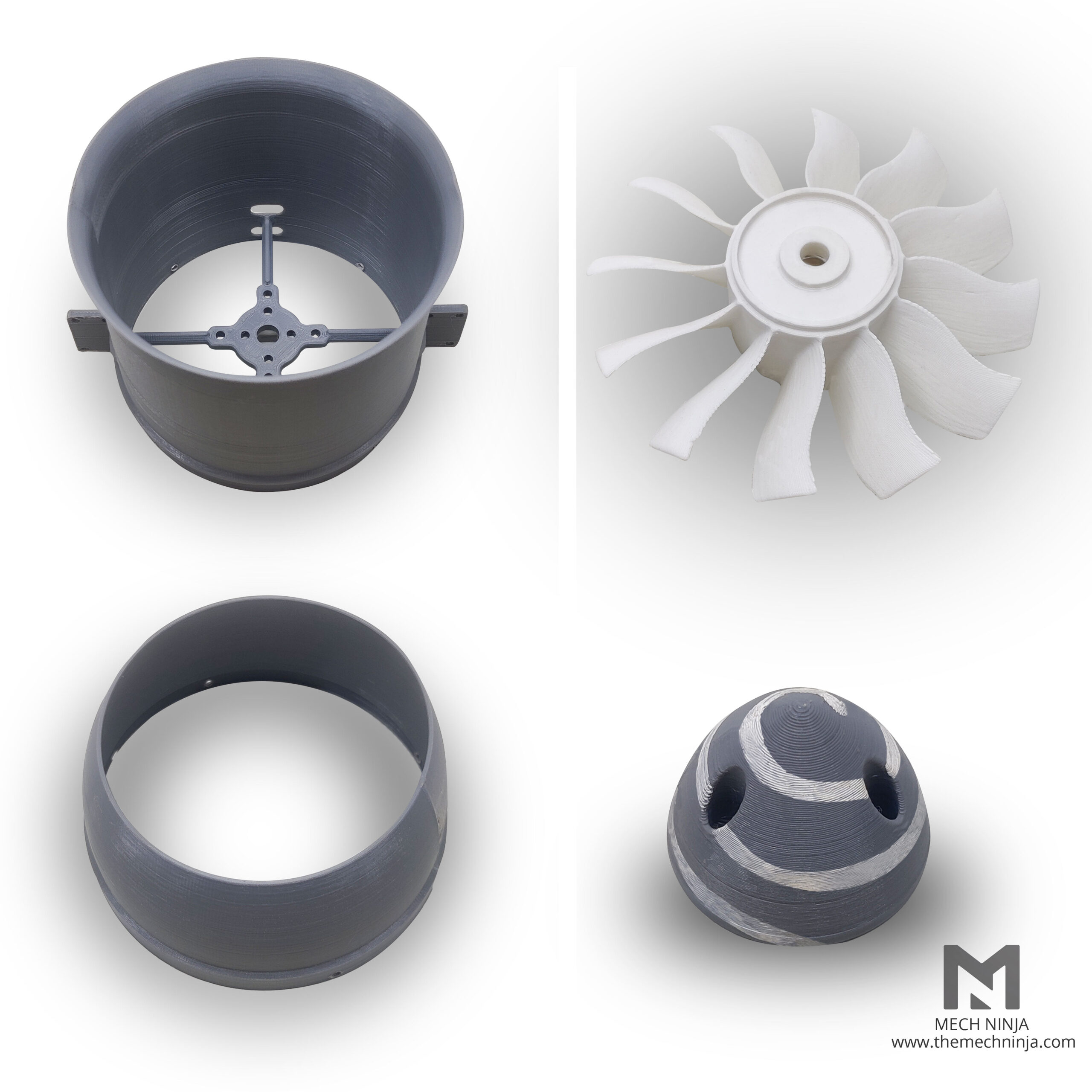

This file contains 6 .STL files i.e.

1. Back Blade
2. Front Blade
3. Diffuser
4. Nozzle
5. Outer Shell
6. Second Shell

The ducted fan is distributed into the above-mentioned parts so that you can easily print any part at your home with your own DIY 3D printer of minimal size i.e. 220(mm)x220(mm)x250(mm).

All the files given are complete and have been tested.

For assembly and further instruction, you can visit the link given below

Electric Ducted Fan: The Best Step Wise Guide

OR

Watch our DIY Electric Ducted Fan video on youtube.

Details of each file are given below separately:-

Back Ducted Blade

• Width: 93.43 mm
• Depth: 23 mm
• Height: 94.43 mm
• Total Printing Volume: 16,746 mm³

Front Ducted Blade

• Width: 94.43 mm
• Depth: 25 mm
• Height: 94.43 mm
• Total Printing Volume: 17,253 mm³

Diffuser

• Width: 35.99 mm
• Depth: 26.92 mm
• Height: 35.99 mm
• Total Printing Volume: 3,281 mm³

Nozzle

• Width: 50 mm
• Depth: 106 mm
• Height: 106 mm
• Total Printing Volume: 21,156 mm³

Outer Shell

• Width: 90 mm
• Depth: 133 mm
• Height: 110 mm
• Total Printing Volume: 44,609 mm³

Second Shell

• Width: 56 mm
• Depth: 106 mm
• Height: 106 mm
• Total Printing Volume: 23,689 mm³
