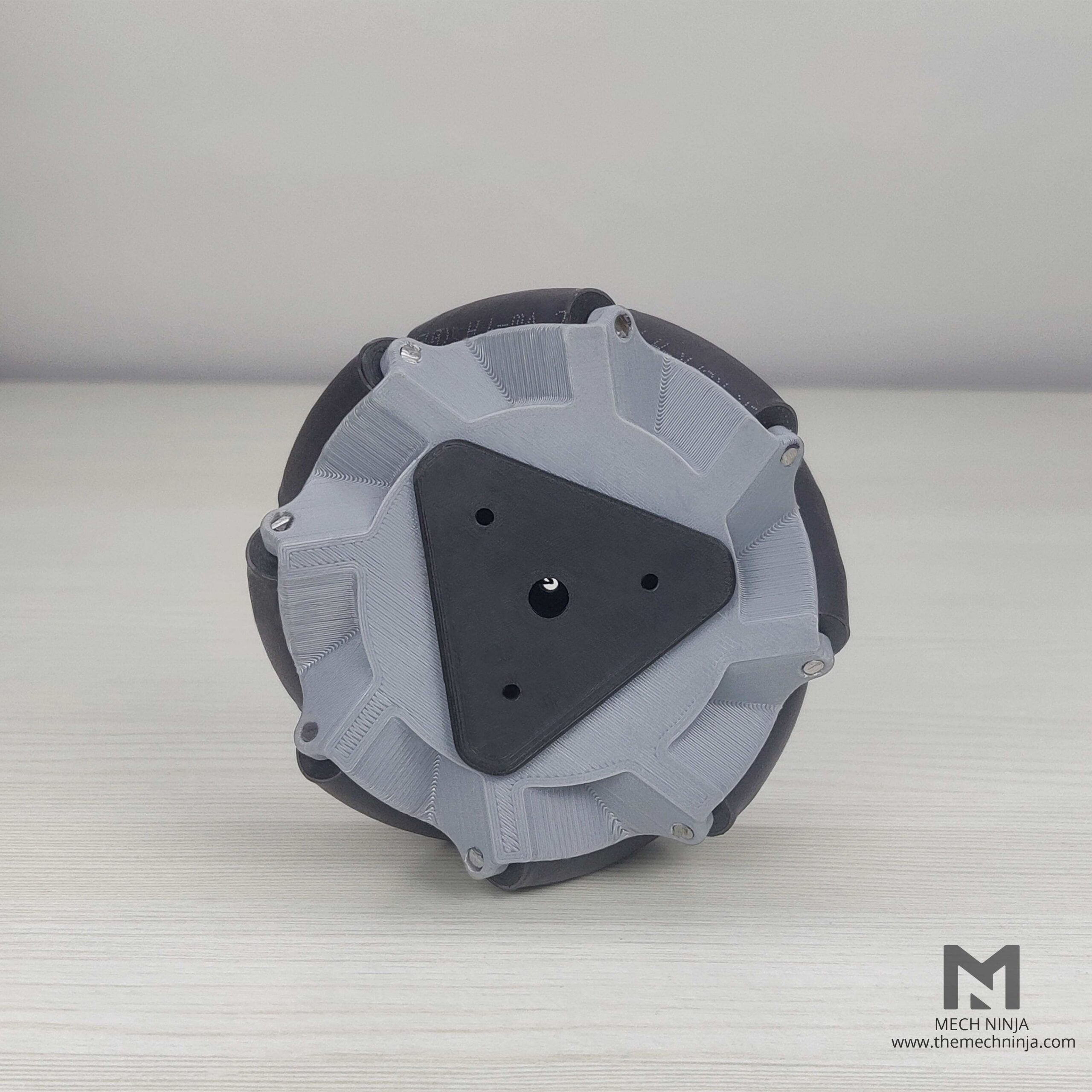

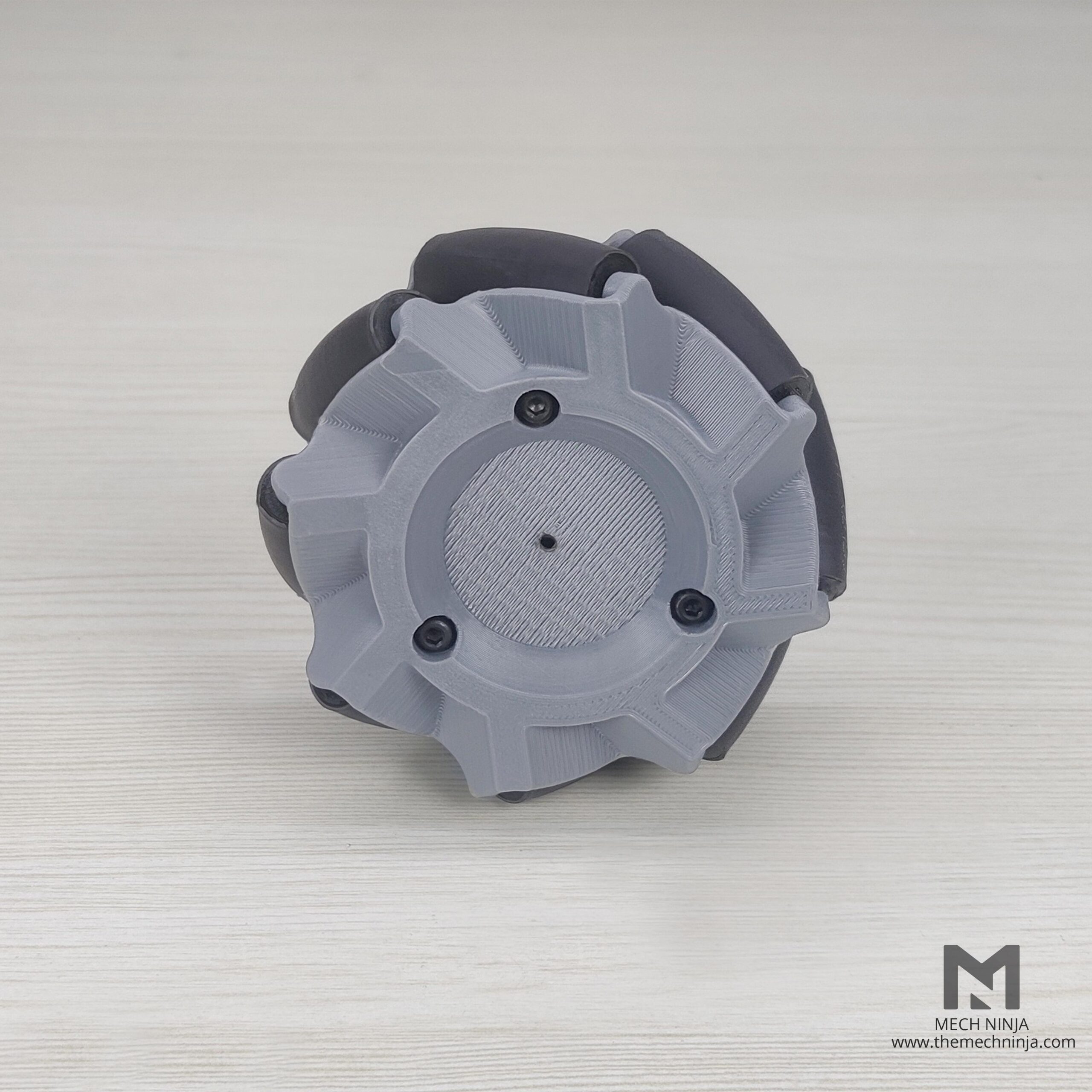

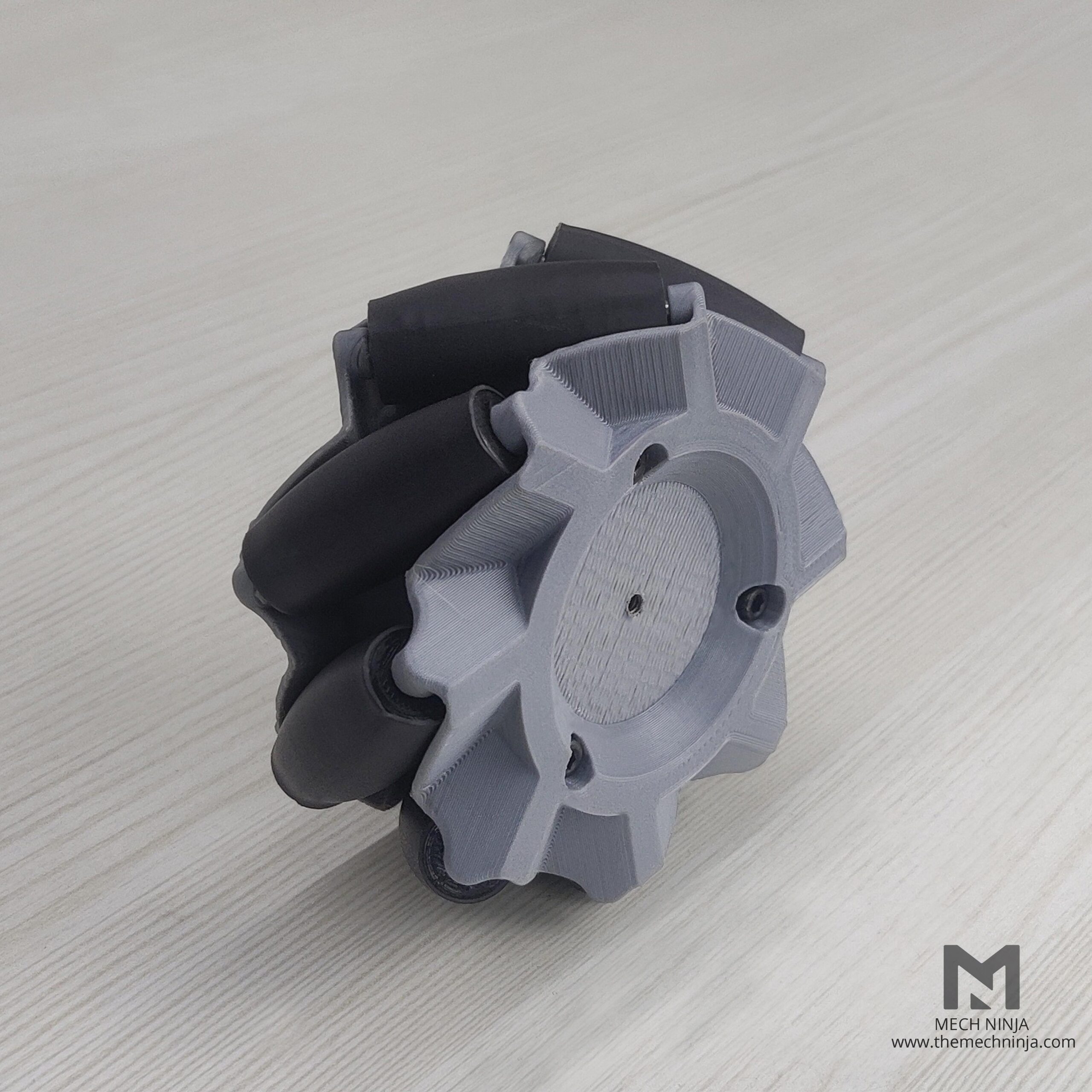

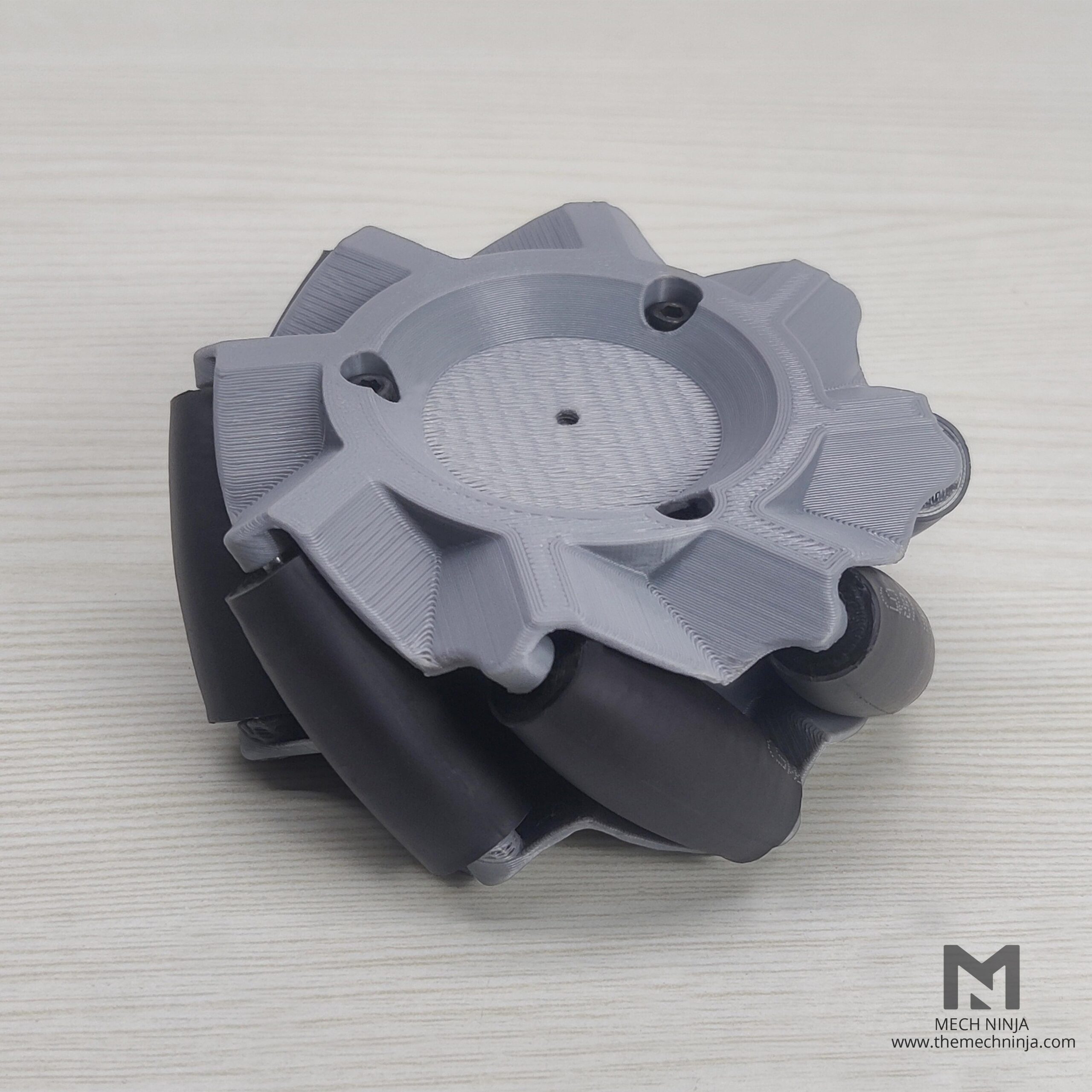

90mm Mecanum Wheel

(2 customer reviews)

Original price was: ₹ 656.16.Current price is: ₹ 492.12.

  • 90mm Mecanum Wheel .STL File in one ZIP.
  • Total Print Volume: 48,951 mm³.
  • Total 4 files for easy 3D printing.

License – TheMechNinja Paid Standard Digital File License

Guaranteed Safe Checkout
  • UPI ICON

3D Printable 90mm Mecanum Wheel .STL Files

This file contains all files required to 3D print your own Mecanum Wheel at home.

Total Printing Volume of all 4 Files: 48,951 mm³

This ZIP file contains 4 .STL files i.e.

    1. Back
    2. Front
    3. Roller
    4. Connector

Product is distributed into the above-mentioned parts so that you can easily print any part at your home with your own DIY 3D printer of minimal size i.e. 220(mm)x220(mm)x250(mm).

To make your own homemade 3D printer at home see the blog below.

Homemade 3D Printer | Simple DIY Under $150



All the files given are complete and have been tested.

The print volume of all files (approximately):-

  1. Back

    • Volume: 14,707 mm³
    • Dimensions (LBH): 18 x 82 x 82 mm
  2. Front

    • Volume: 22,385 mm³
    • Dimensions (LBH): 28 x 82 x 82 mm
  3. Roller

    • Volume: 5,989 mm³
    • Dimensions (LBH): 35 x 16 x 35 mm
  4. Connector

    • Volume: 5,870 mm³
    • Dimensions (LBH): 34 x 50 x 45 mm

90mm_Mecanum_Wheel_Parts





2 reviews for 90mm Mecanum Wheel

    Mahesh
    February 5, 2023
    Perfectly designed and easy to print. @ashwinii you need to rotate the part and assemble them since it fits at only one position as mentioned in the video. And also you need to mirror it to create other wheel.
    ashwiniii
    January 2, 2023
    The parts dont fit into each other e.g the connector, and then later i realised that they dont include both rotations that is required inorder for mecanum wheels to work in the first place :(
